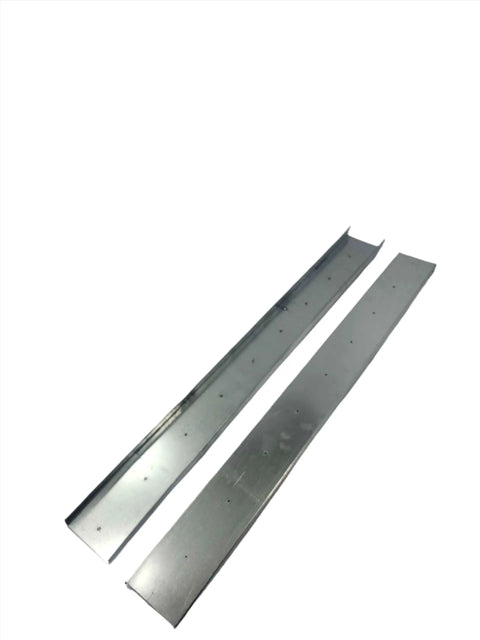

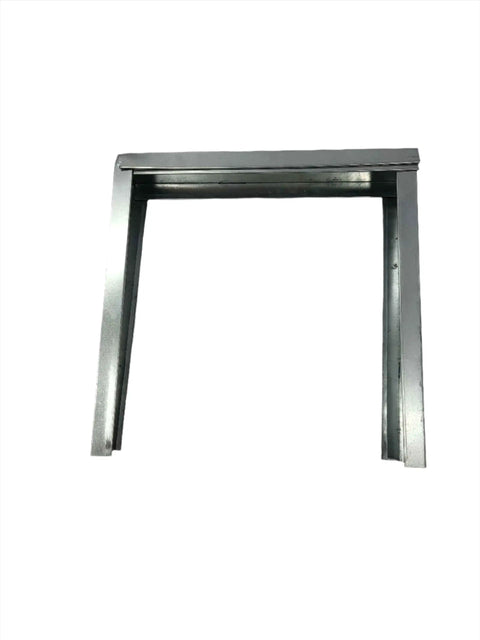

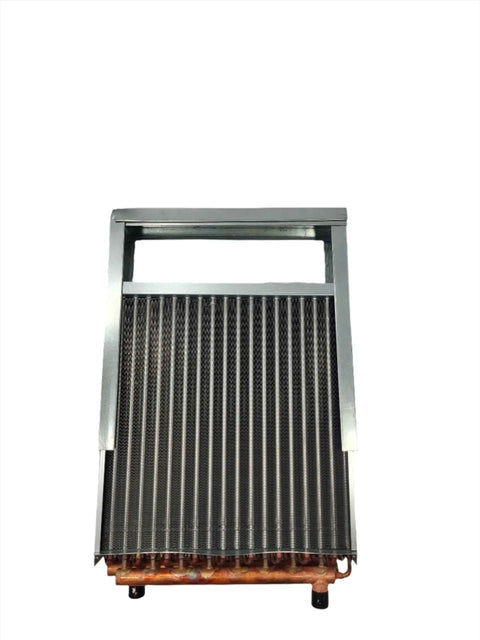

Built Tough 20x25 Water To Air Heat Exchanger Featuring Heavy Duty Front Flange And Dead Simple Install Kit For 200000 Btu Outdoor Wood Boiler Furnace Systems
✔️ 200000 BTU tri-pass coil setup with 12 fins per inch aluminum plates

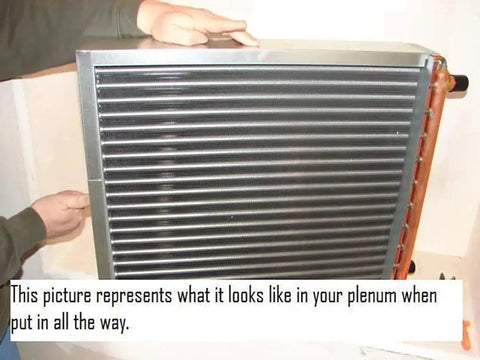

This single unit moves thermal energy from outdoor boiler loops straight into standard hot air furnace plenums. It slides right into residential HVAC racks, knocking out old fuel costs during freeze-ups while providing slick cooled air when you swap in a chilled water source.

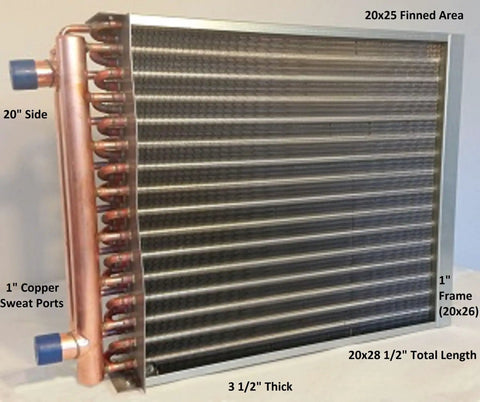

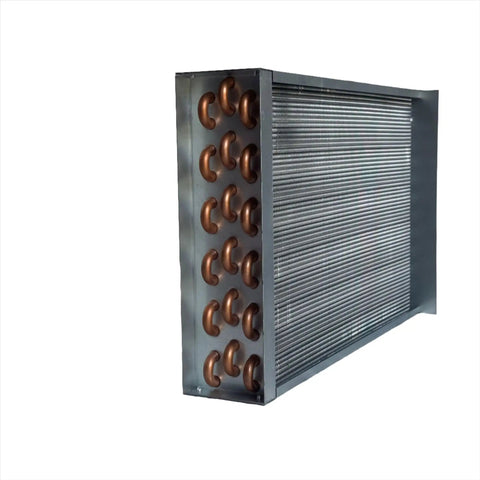

✅ Measures twenty by twenty five inches across the face with a tight three point five inch depth✅ Triple pass layout packs dense copper tubing inside lightweight aluminum plates
✅ Supports direct sweat connections plus quick lock push fit adapters
✅ Rated for steady fourteen day runtime under heavy boiler pressure loads
💡 What determines the correct sizing for a water to air heat exchanger?
- Calculate total square footage to cover and match the required BTU output against your existing blower capacity
- Check flow rate numbers on your boiler pump since proper water velocity prevents mineral buildup and scaling

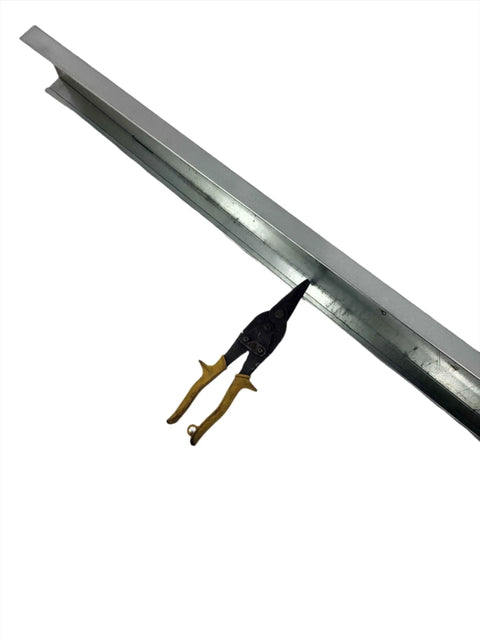

- Measure available duct clearance because a handy install kit saves hours of bending metal or welding brackets
- Review cycle frequency notes since continuous heating demands thicker gauge metals that retain warmth through drop offs
