Built Like A Tank T25 Trapezoidal Lead Screw Set With Snappy Folding Aluminum Handwheel Designed To Dominate Cnc Linear Motion Projects And Deliver Zero Friction Manual Crank Control
✔️ 45 carbon steel track built for heavy loads and fast travel

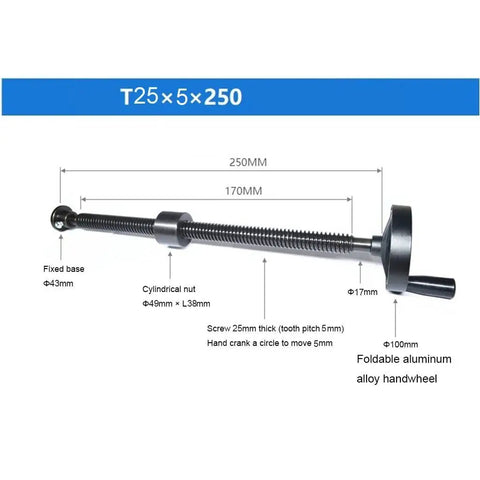

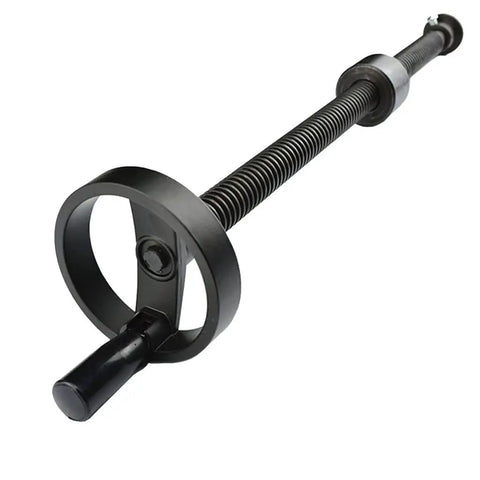

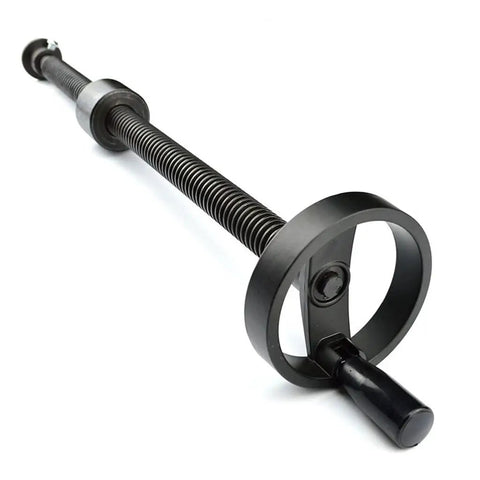

This T25 trapezoidal lead screw assembly delivers reliable manual positioning for DIY CNC routers and light industrial machine tools. The mounted folding aluminum handwheel provides direct mechanical advantage for smooth table movement while tucking away neatly when not in use.

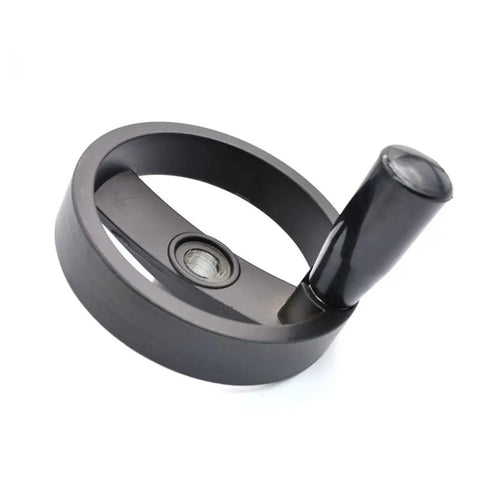

✅ 45# hardened steel core with matte black protective finish✅ Foldable alu alloy crank dial dia 100mm to 160mm options
✅ Threaded shaft runs multiple sizes from 250mm to 1000mm
✅ High load rating and tight pitch tolerance for steady tracking
💡 How do you size a trapezoidal lead screw assembly for a heavy load CNC table?
Picking the right drive component saves you backlashes and weird binding during fast moves. You just need to nail down these specific details before bolting anything down:
- Calculate your total moving mass and pick a screw diameter that stays stiff under pressure
- Verify your motor torque matches the pitch ratio for a handy manual override when power cuts out
- Align bearing blocks with zero misalignment to prevent scrubbing across tight bends
