Budget Friendly 360 Degree RPLIDAR S1 TOF Lidar Sensor With 40 Meter Range For Obstacle Avoidance And Smooth Navigation In AGVs And UAVs Fast And Stable Ranging That Keeps Distance Consistent At Any Range

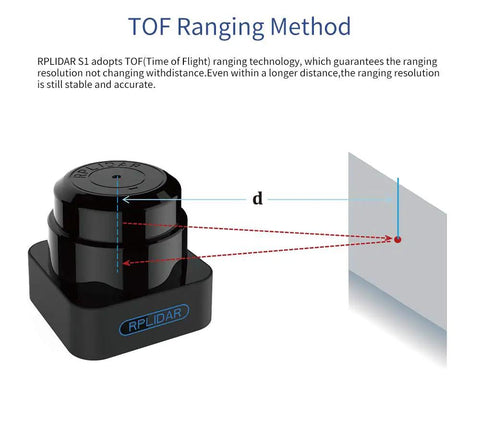

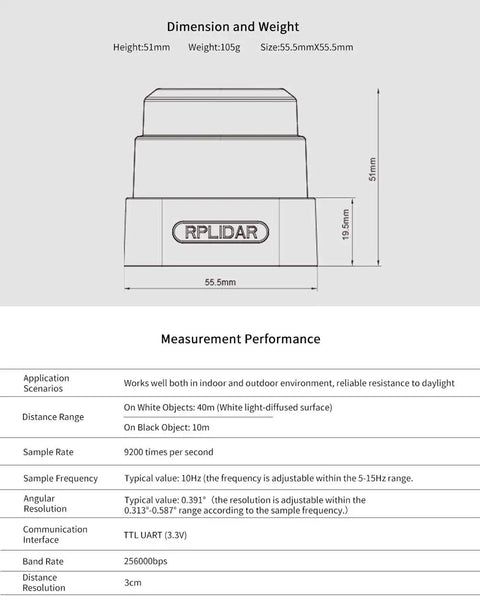

✔️ TOF with stable accuracy to 40m, 9200 samples/sec, 0.391° res

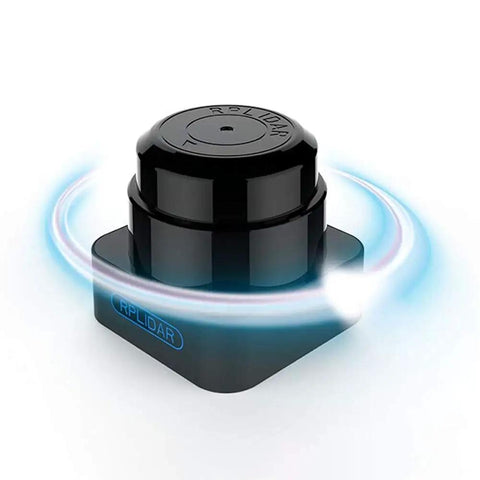

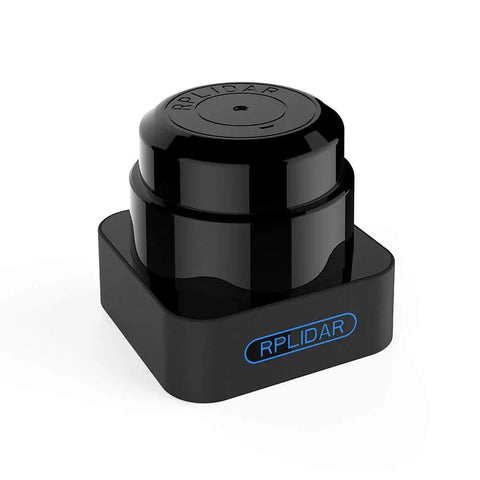

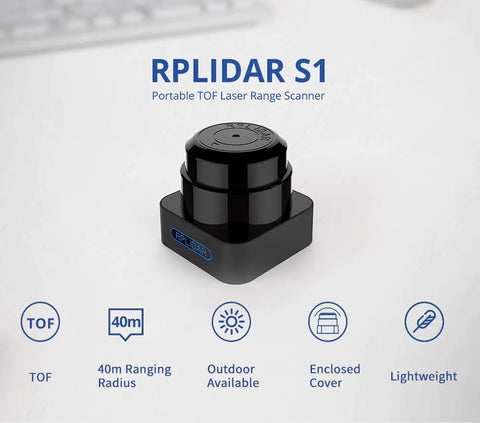

The 360-degree TOF lidar sensor is built for reliable obstacle detection and mapping in mobile robots, drones, and automated vehicles. Its compact, pocket-sized design fits into tight enclosures and outdoor housings, making it a smart choice for AGVs, UAVs, and robotic platforms that need steady sensing in daylight.

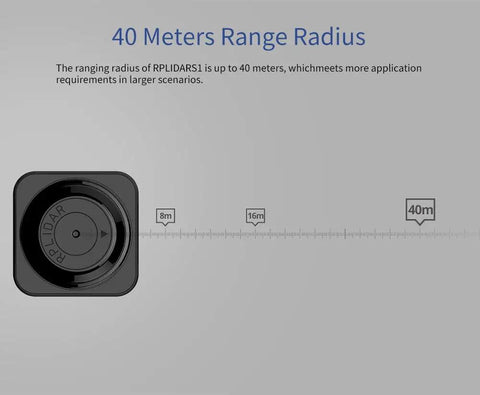

✅ 40 m range on white objects; 10 m on black objects
✅ 9200 samples per second data rate
✅ Angular resolution adjustable from 0.313° to 0.587° (typical 0.391°)
✅ TTL UART 3.3V interface with 256000 bps baud

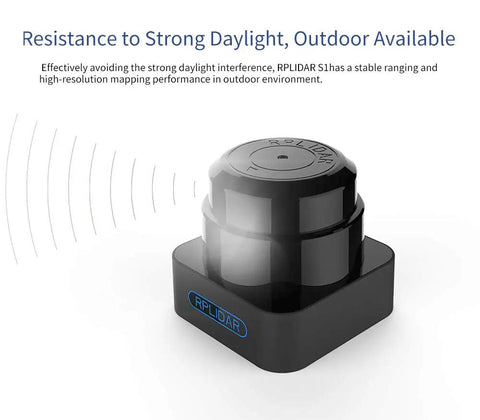

✅ Enclosed cover blocks interference and improves outdoor stability

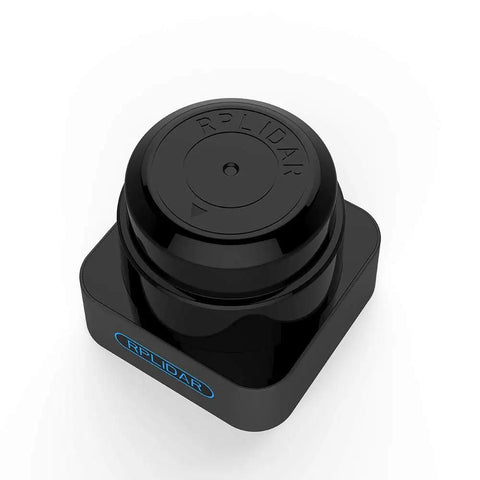

✅ Ultra-thin, pocket-friendly size for easy integration
💡 What is a 360° TOF LIDAR sensor used for in robotics? This handy tool helps with navigation and safety in mobile platforms.
- Obstacle detection and collision avoidance for AGVs, UAVs, and robotic arms - Real-time distance measurement for mapping and SLAM in indoor/outdoor settings - Easy integration with TTL UART 3.3V interfaces and common data rates
