Brushed Micro DC Motor RF-300C Mini 300 Series, 5V 6V 9V 12V, 7000 RPM, 24mm Round Spindle, Low Current, No Gear Model A, Explosion Proof Core Motor for DIY CNC, Robotics and Micro Equipment

RF-300C mini DC motor, 12V, 2.0mm shaft, no gear
✔️ Model RF-300C-07800, size 24.3x12.5mm, shaft 2.0mm, 7mm length

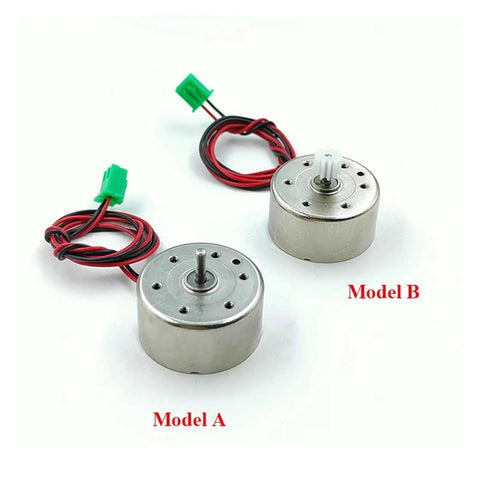

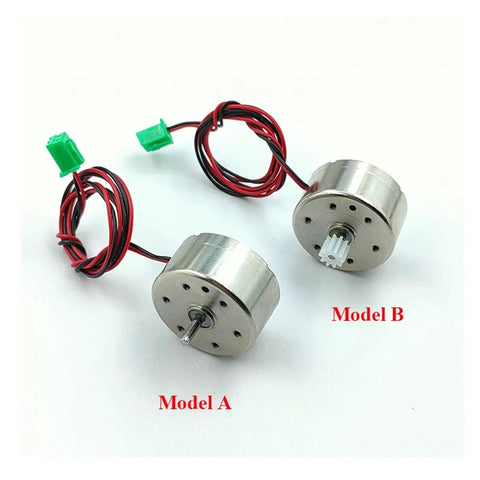

The RF-300C micro spindle motor is a compact permanent magnet micro motor used in small CNC rigs, robotics projects, and micro tooling in tight spaces. This is the Model A No Gear version (no internal gearing); if you need a geared option, pick Model B with a 10-tooth plastic gear.

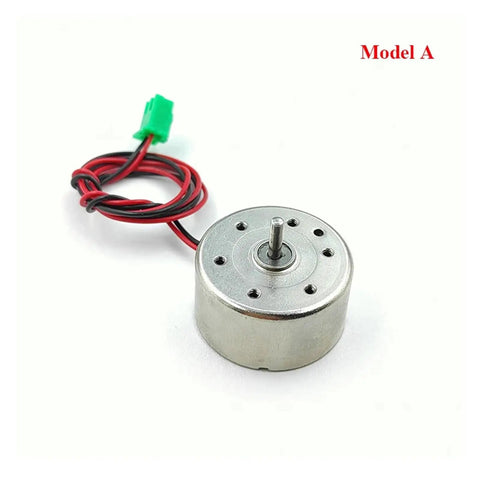

✅ Model RF-300C-07800 (Model A No Gear)

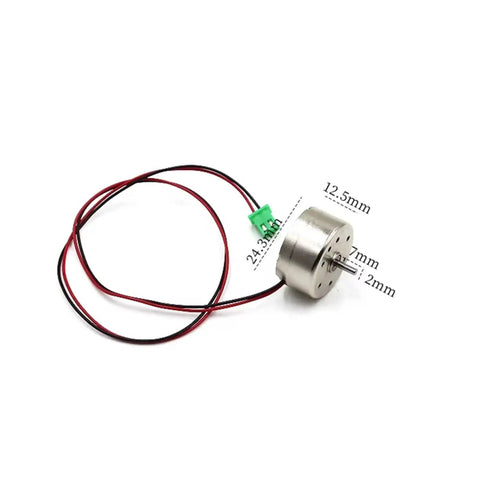

✅ Motor size: 24.3mm x 12.5mm
✅ Output shaft: 2.0mm diameter, 7mm length
✅ Rated voltage: DC 12V; suitable voltage range: DC 5.0-18.0V
✅ No-load speeds: 5V 2950RPM; 6V 3500RPM; 9V 5450RPM; 12V 7000RPM; 18V 11000RPM
✅ No-load current: 5mA at 5V; 6mA at 6V; 9mA at 9V; 12mA at 12V; 18mA at 18V
✅ Protection: Explosion-proof
✅ Pack size: 1 piece
✅ Package: Motor x 1 PCS

💡 What is a small DC spindle motor used for in hobby robotics and micro machines? This handy motor drives tiny spindles, gearboxes, and rotation tasks in compact builds. - handy for DIY CNC and robotics projects - ideal for micro drilling, milling, and spindle tasks in small spaces - works with common 5-18 V DC supplies, with no gear option providing direct drive
