Blue DK2.5N-BL DIN Rail Terminal Block Screw Type With UL 600V 20A 12-22AWG Go-To Compatibility High Reliability Compact Wire Space Saver Pack Of 100 For Industrial Projects

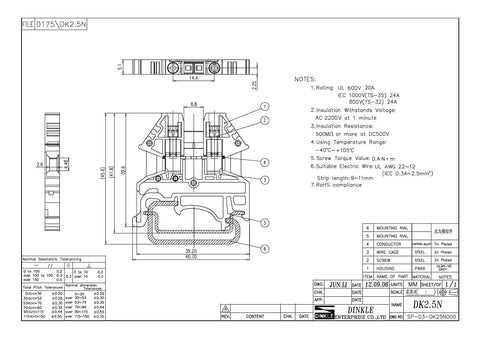

✔️ UL 600V, 20A, 12-22AWG, PA body, 5.1x39.6x40.5 mm size

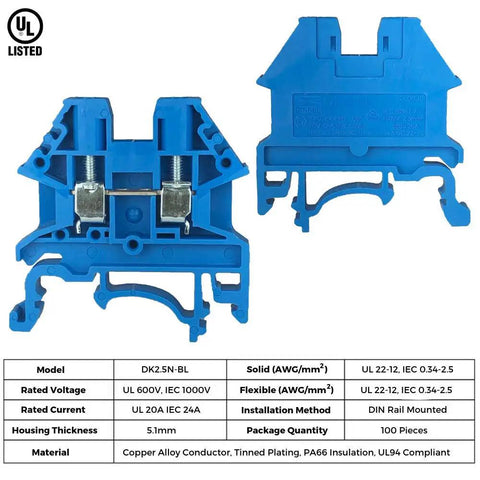

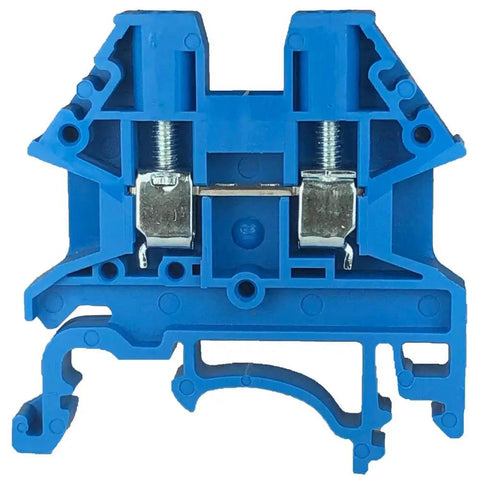

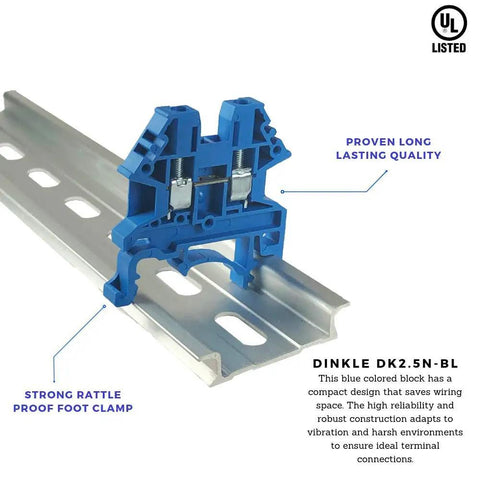

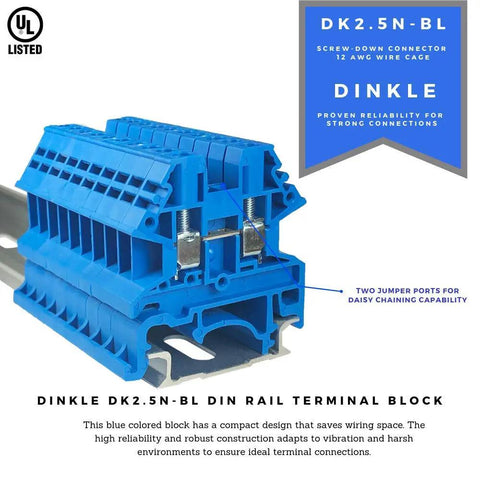

The blue DK2.5N-BL DIN rail terminal block is a screw-type connection device designed for quick, secure wiring on DIN rails in control panels and industrial enclosures. Its compact design saves wiring space and its robust construction resists vibration and temperature changes, reducing connection faults.
✅ Rated voltage: UL 600V; IEC 1000V
✅ Rated current: UL 20A; IEC 24A
✅ Conductor range: solid 0.5-2.5 mm2 (12-22 AWG)
✅ Wire strip length: 9-11 mm
✅ Material: PA insulating body
✅ End cover: DK4NC; partition DKNSPS-005
✅ Jumper: DSS2.5N-02P, 10P
✅ Marking labels: TM08W, TM26W
💡 What is a DIN rail terminal block used for in electrical panels? This handy connector helps organize and secure wiring on DIN rails in control cabinets and industrial gear. - distribute power and signals cleanly in cabinets - provide secure screw clamps for solid and flexible conductors - tolerate vibration and temperature variations common in industrial settings - simplify field wiring and maintenance
