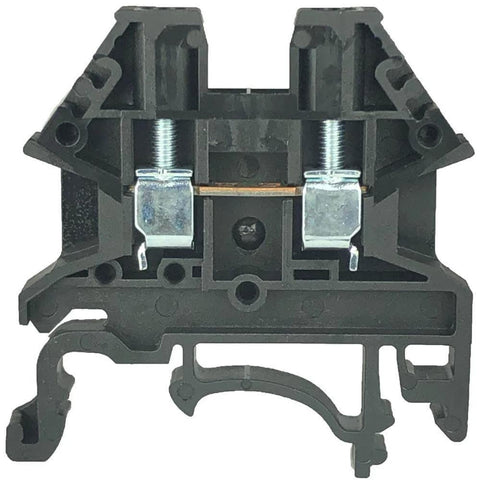

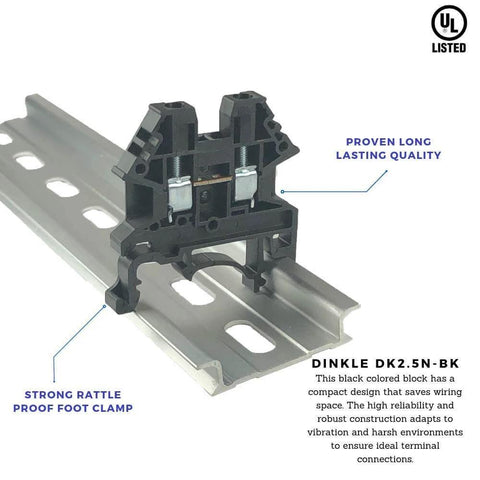

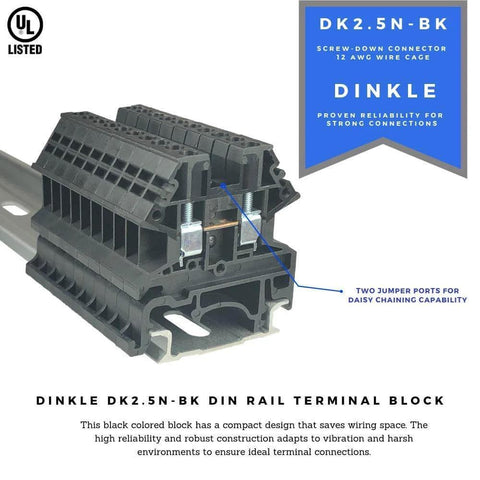

Black DK2.5N DIN Rail Terminal Block Screw Type UL 600V 20A 12-22AWG Pack Of 50 Built For Tough Duty Space Saving Rugged Terminal Block With Vibration And Temperature Tolerance For Industrial Electrical Panels

Compact 50-Pack DIN Rail Block Terminal, 2.5 mm Screw
✔️ UL 600V, 20A, 12-22AWG, PA insul, 9-11mm strip, M2.5 screw

This compact screw terminal block is built for rugged industrial panels, automation cabinets, and control enclosures. It saves wiring space and tolerates vibration and temperature changes to prevent loose connections.

✅ UL 600V rating for safe industrial use
✅ 20A current rating
✅ Wire size range: 12-22 AWG (0.5-2.5 mm2)
✅ Conductor cross-section: solid or flexible 0.5-2.5 mm2
✅ Screw type M2.5 for secure terminations
✅ Wire strip length: 9-11 mm
✅ PA insulating material, black color
✅ Dimensions: 5.1 x 39.6 x 40.5 mm
✅ End cover DK4NC-BK and partition DKNSPS-005 included in system
✅ Impulse withstand: 6 kV and torque 0.4 Nm

💡 What is a DIN rail terminal block used for in industrial electrical panels? This handy device helps terminate and route wires on a DIN rail in control cabinets. Wire management and secure connections UL-rated safety for rough environments Space-saving design for tight panel layouts Ideal for automation and machine control applications
