Belt Drive Linear Guide Module With Nema 17 Stepper For CNC Machines DIY Friendly Ultra Slim 30mm Wide Aluminum Rail 700mm Stroke Work Size 800 mm Per Second Speed Low Noise Under 65 dB Precision Linear Stage

Single-unit slim belt-drive linear guide for CNC machines
✔️ 30 mm width rail; stroke up to 3500 mm; Nema 17 motor; single unit

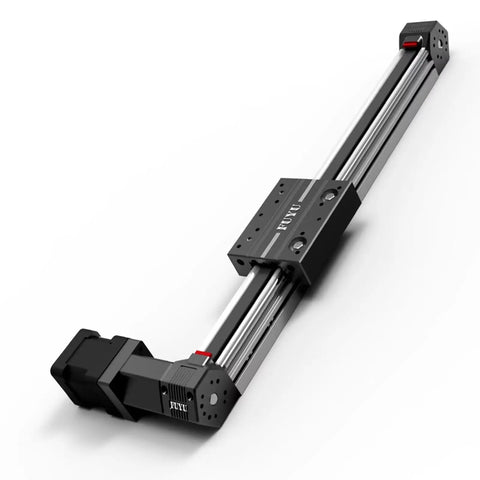

Compact belt-driven linear guide module built for CNC machines and DIY automation. It features a 30 mm wide precision aluminum rail and belt-driven drive for high-speed, stable motion in tight spaces, perfect for lightweight gantry builds and hobby milling stations.

✅ 30 mm width ultra-slim aluminum rail for compact CNC installs
✅ Belt-driven motion up to 800 mm/s with low noise
✅ Service life up to 6000 km and 860,000 full-stroke cycles
✅ Load options: Horizontal 8 kg, Vertical 2 kg, Side 4 kg, Flip 4 kg
✅ Max stroke up to 3500 mm; standard 700 mm work size; customizable for multi-axis
✅ Default Nema 17 (4247) stepper; customization available for stroke/motor/multiaxis

💡 What is a belt-drive linear guide module used for in CNC machines?

It’s handy for precise, fast, and repeatable motion in tight DIY and small automation setups.

- handy for compact CNC gantries, laser cutters, and 3D printers - offers sealed ball bearing options and ceramic bearings for longer life - improves repeatability, load handling, and dynamic response in linear slide units
