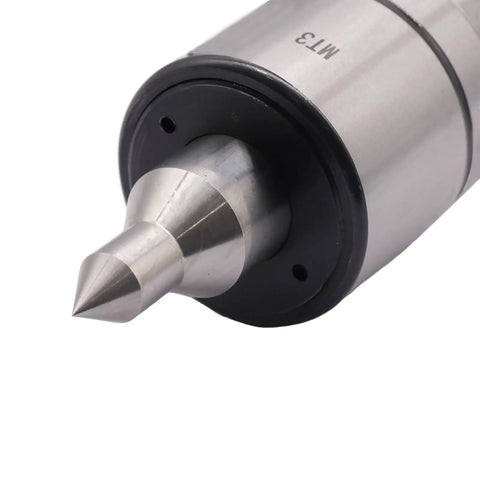

Beefy Triple Bearing Long Nose Live Center For Lathe Tailstock, Heavy Duty 60 Degree Point, 440 Lb Load Capacity, 0.000197 Inch Accuracy, Up To 3000 RPM, High Carbon Steel CNC Tooling For Lathes And Turning
Regular price
$88.88
Sale price$150.00you save $61.12
Heavy-Duty MT3 Live Center for Precision Lathe Turning
✔️ Pack: 1x, triple-ball bearing, 60° point, 440 lb load, 3000 RPM
✅ Max RPM: 3,000
✅ Center Point: 60 degrees
✅ Material: High Carbon Steel
✅ Shank: Morse Taper #3
✅ Total Length: 6.95 in (176.2 mm)
✅ Outer Diameter: 1.97 in (50.0 mm)
✅ Point Diameter: 0.94 in (23.9 mm)
✅ Small Point: 0.39 in (9.9 mm)
✅ Point Length: 1.63 in (41.4 mm)
✅ Accuracy: 0.000197 in (0.005 mm)
✅ Triple-ball bearing design for smooth operation
✔️ Pack: 1x, triple-ball bearing, 60° point, 440 lb load, 3000 RPM
Durable live center designed for tailstock use on lathes and CNC turning centers. It supports long, slender workpieces at high speeds, using a sealed triple-ball bearing design for smooth rotation and tight tolerances.
✅ Load Capacity: 440 lbs (199.6 kg)✅ Max RPM: 3,000
✅ Center Point: 60 degrees
✅ Material: High Carbon Steel
✅ Shank: Morse Taper #3
✅ Total Length: 6.95 in (176.2 mm)
✅ Outer Diameter: 1.97 in (50.0 mm)
✅ Point Diameter: 0.94 in (23.9 mm)
✅ Small Point: 0.39 in (9.9 mm)
✅ Point Length: 1.63 in (41.4 mm)
✅ Accuracy: 0.000197 in (0.005 mm)
✅ Triple-ball bearing design for smooth operation
💡 What is a live center used for in turning operations?
Live centers provide precise support for rotating workpieces at the tailstock, enabling high-precision finishes.
- Handy for high-speed lathes and CNC turning
- Improves concentricity and surface finish
- Compatible with MT3 tailstock configurations
