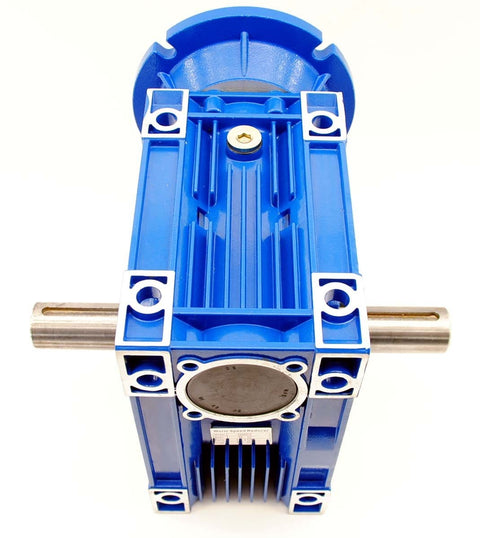

Beefy Torque MRV090 Worm Gear Speed Reducer 100 To 1, 56C Mount, Hollow Shaft, 5/8 Inch Input, 1 3/8 Inch Output, 1.12 HP At 1750 RPM, Industrial Gear Reducer For Heavy Duty Machinery
✔️ 5/8 in input, 1-3/8 in output, 100:1, 56C, 1.12 HP @1750

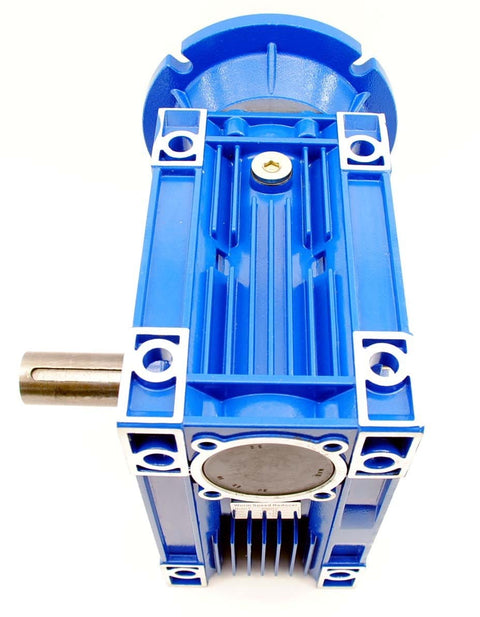

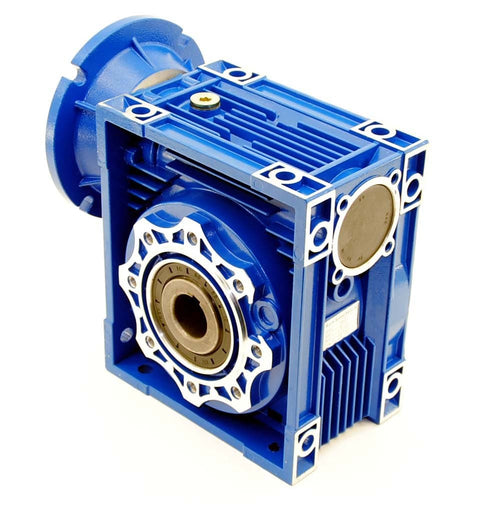

The MRV090 series worm gear speed reducer is a compact, heavy‑duty gear head designed for industrial machinery. It uses a hollow input shaft and a 56C mounting flange to fit common setups in conveyors, feeders, and other power transmission systems. The all‑aluminum housing with epoxy coating provides solid heat dissipation for reliable, long‑term operation in demanding environments.
✅ Ratio: 100:1
✅ Input shaft: hollow 5/8 dia x 1-7/8 long; 16 mm x 47.6 mm, keyed
✅ Output shaft: hollow 1-3/8 dia x 5-1/2 long; 35 mm x 139.7 mm, keyed; torque ~2389 lb-in

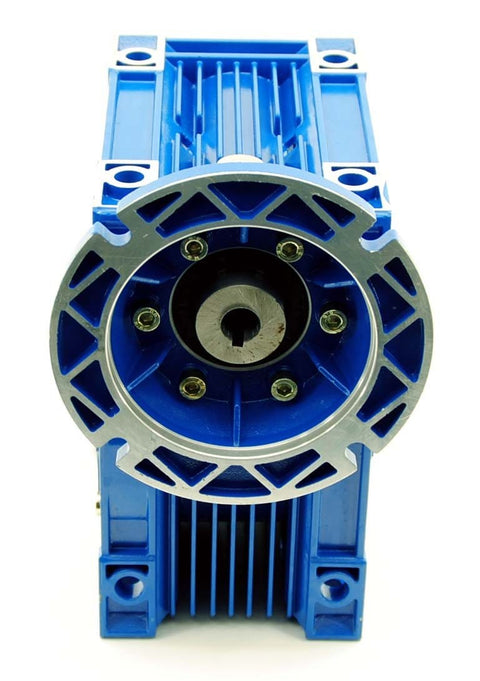

✅ Mounting: 56C flange
✅ HP rating: 1.12 HP @ 1750 RPM
✅ Housing: aluminum heat-dissipating with epoxy coating
✅ Output shaft kits: not included, sold separately
💡 What is a worm gear speed reducer used for in heavy machinery? A handy explanation for common drive setups.
- Reduces speed while increasing torque for high-load drives
- Ideal for conveyors, mixers, and material handling lines
- Supports standard 56C mounting and hollow shaft inputs
- Promotes smooth torque transmission and longer motor life
