Beefy Torque Dual Shaft Nema 23 Stepper Motor 2.83Nm 400Oz In 4A 8 Wire 6.35mm Shaft High Torque Bipolar For CNC Mill Lathe Router 1.8 Degree Step Angle 200 Steps Per Rev Great For CNC Machining Projects
✔️ 2.83Nm torque, 1.8° step, 200 steps/rev, 8-wire, dual shaft

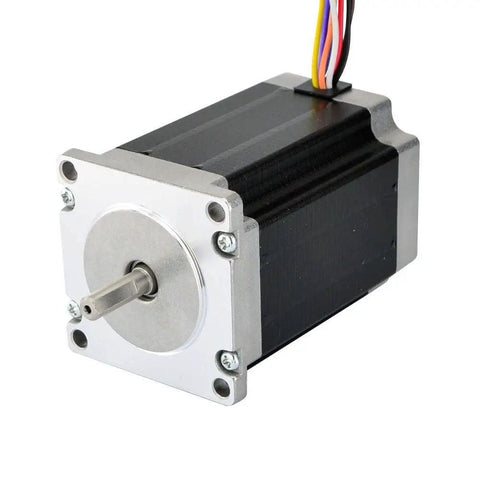

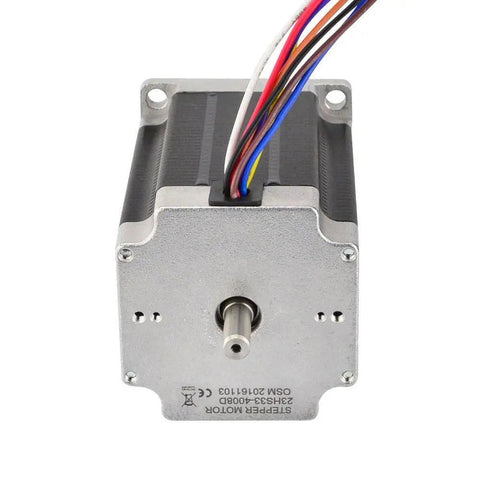

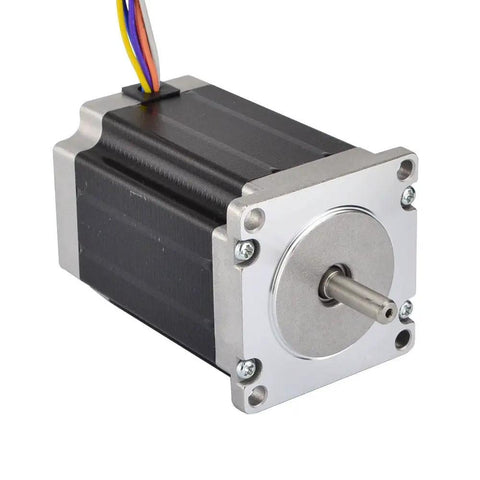

This dual shaft NEMA 23 stepper motor is built for CNC mills, routers, and lathes, delivering solid torque and flexible wiring. It supports unipolar and bipolar wiring with a rear shaft ready for an encoder or hand wheel, expanding control options on demanding machines.

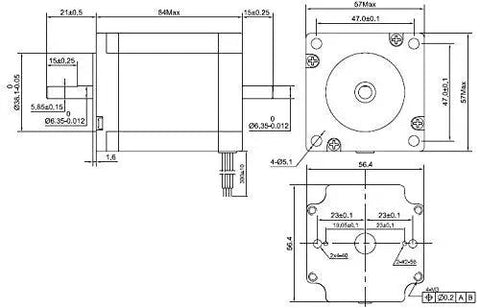

✅ Frame size 57 x 57 mm, body length 84 mm, shaft diameter 6.35 mm
✅ 1.8° step angle (200 steps/rev), 8-wire configuration
✅ Holding torque 2.83 Nm (400 oz-in) bipolar; 2.0 Nm unipolar

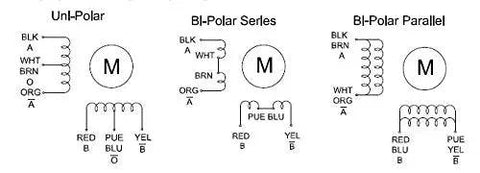

✅ Rated currents: 4.0 A (unipolar) / 2.83 A (bipolar serial) / 5.66 A (bipolar parallel)

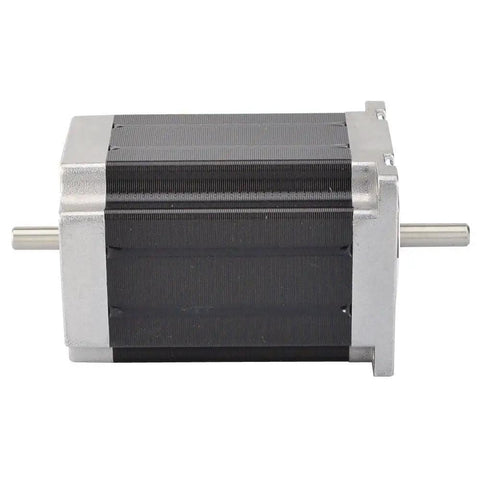

✅ Rear shaft 15 mm, front shaft 21 mm, D-cut length 15 mm
✅ Lead length 300 mm; weight ~1.3 kg
💡 What is a dual shaft stepper motor typically used for in CNC projects? This handy motor is a strong choice when you need precise control across two axes or room for a rear shaft accessory. - Handy for driving multiple axes on CNC mills, routers, and lathes - Supports multiple drive options: unipolar, bipolar serial, and bipolar parallel - 1.8 degree step angle delivers accurate positioning with 200 steps per revolution - 8-wire configuration enables flexible wiring and control schemes
