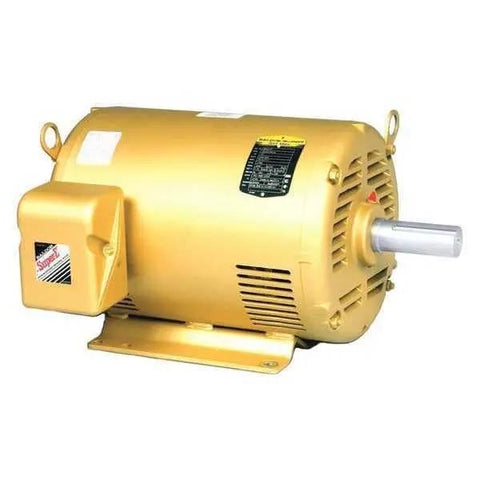

Beefy Three Phase General Purpose Motor 3 HP 182T Frame 208 To 230 Or 460V AC 60 Hz 1760 RPM Open Drip Proof Rigid Base Mount Class F Insulation Service Factor 1.15 Full Load Amps 8.8 And 4.4 A
✔️ 3 HP, 1760 RPM, 182T frame, 208-230/460V, 60 Hz, ODP
This general purpose motor is a three-phase, open drip proof (ODP) design built for dependable operation in industrial settings. It features a rigid base mounting, class F insulation, and a service factor of 1.15 to handle mission-critical loads. With a nominal efficiency around 89.5% and continuous duty, it's a reliable choice for fans, pumps, conveyors, and light machinery.
✅ 3 HP rating, 1760 RPM, 182T frame
✅ Voltage 208-230/460V AC, 60 Hz, three-phase
✅ Open Drip Proof enclosure with rigid base
✅ Insulation class F, service factor 1.15
✅ Full load amps 8.8 A / 4.4 A
✅ Ball bearings, steel frame, max ambient 40°C
✅ CW/CCW rotation options; continuous duty; 89.5% efficiency
✅ CSA and UR approvals
💡 What is a three-phase general purpose motor used for in industrial settings? This handy motor drives fans, pumps, conveyors, and other equipment in factories and workshops. - Runs on standard three-phase power and supports continuous duty - Compatible with common controls and VFDs for speed management - Easy to mount with rigid base configurations
