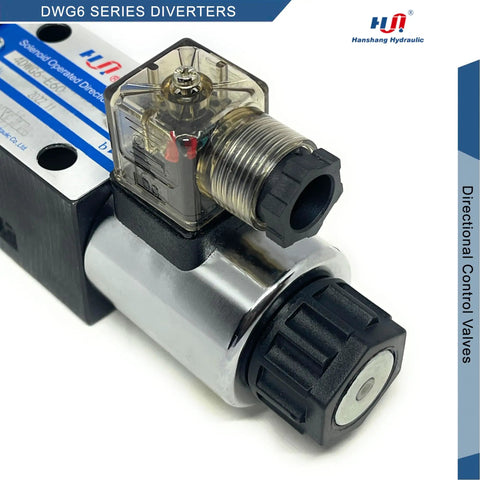

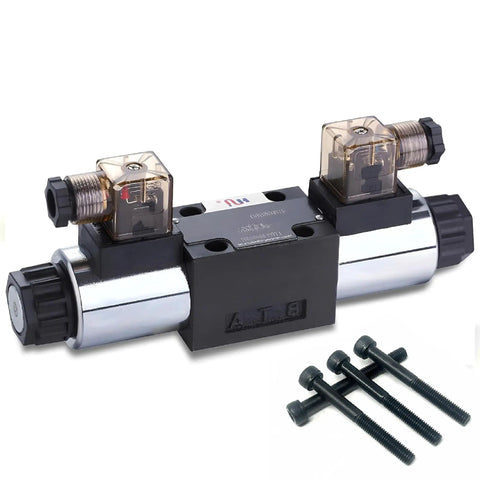

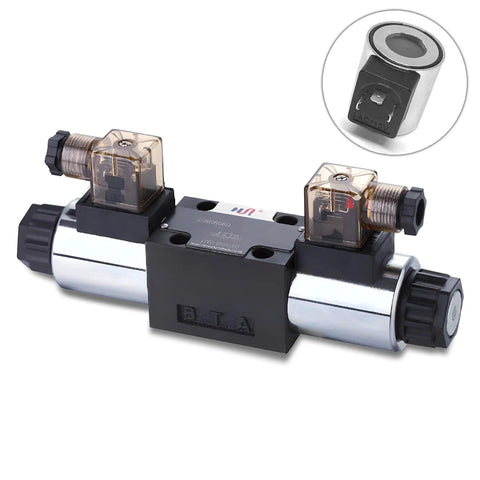

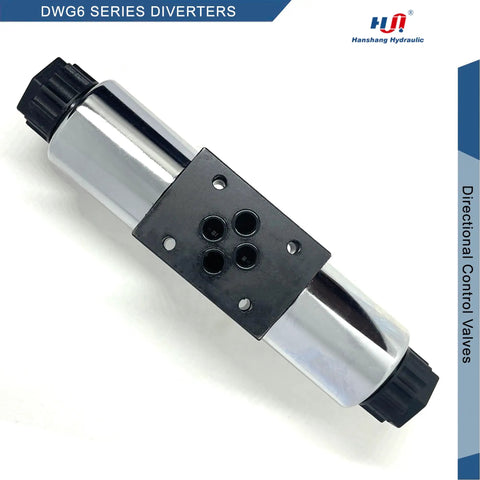

Beefy Size Six 3-Position 4-Way Hydraulic Valve With Electric Solenoid NG6, 2-Pin, 4-Port Directional Control For Mobile And Industrial Equipment, AC 110V Coil, Sub-Plate Or Manifold Compatible NG6 D03 Systems
✔️ 60 L/min max flow, AC 110V coil, NG6/D03 compatible, 1 unit
The NG6 4-port hydraulic valve is a rugged, electrically actuated directional control valve designed for mobile equipment, industrial automation, and construction gear. It works with NG6 or D03 sub-plates or manifolds, delivering precise three-position, four-way control for hydraulic actuators in harsh environments.

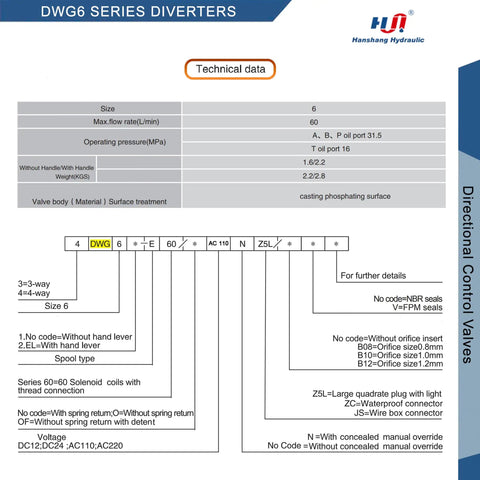

✅ Size 6 body with 4 ports and 3-position directional control
✅ Max flow 60 L/min for robust actuation
✅ Coil: AC 110V, 50 VA (220 VA inrush); DC 30 W

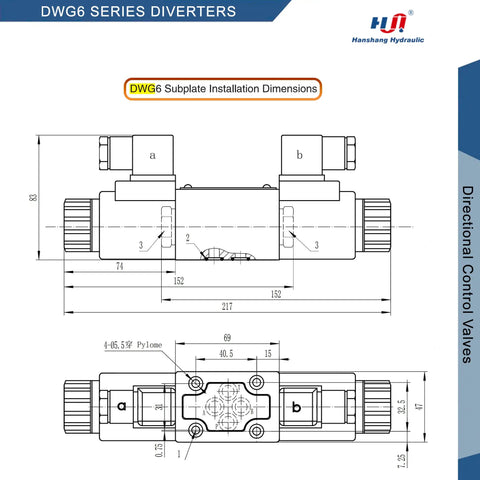

✅ Sub-plate or manifold compatibility: NG6 or D03
✅ Port pressures: A/B/P 31.5 MPa; T 16 MPa
✅ Weight: single head 1.6 kg (no handle); 2.2 kg (with handle); double head 2.2 kg (no handle); 2.8 kg (with handle)
✅ Valve body: phosphate surface-treated cast for corrosion resistance

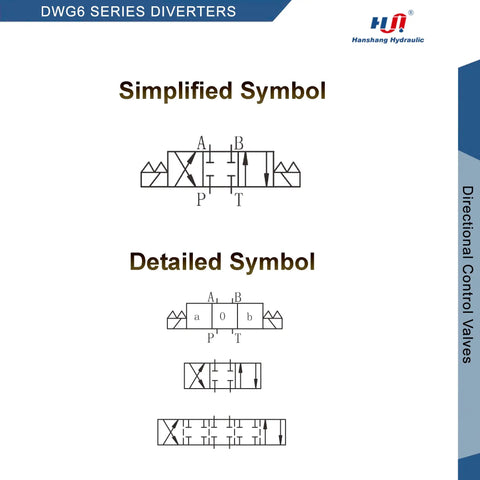

✅ Replacements available for DSG DGV-3 D03S-2 4WE6 VSD03M RPE3 Q03 SWH-G02 with same symbol
💡 What is a hydraulic solenoid valve used for in industrial systems? A handy overview to help buyers understand typical roles and benefits. - Direct hydraulic flow to actuators for precise control - Enable quick on/off and directional changes in mobile equipment - Integrate with NG6/D03 manifolds for compact layouts - Improve system response with reliable 110V AC coil and sealed body
