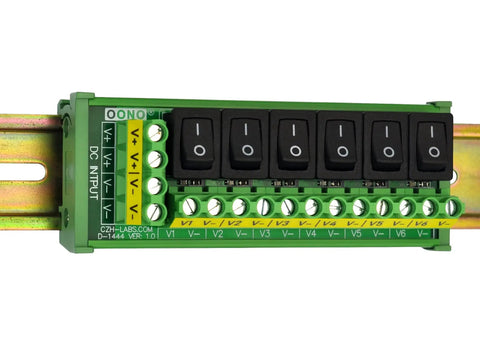

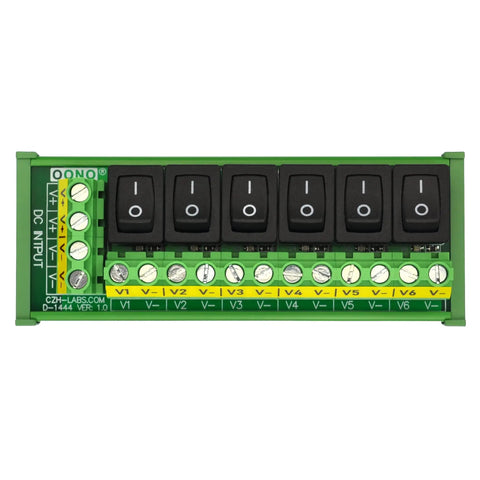

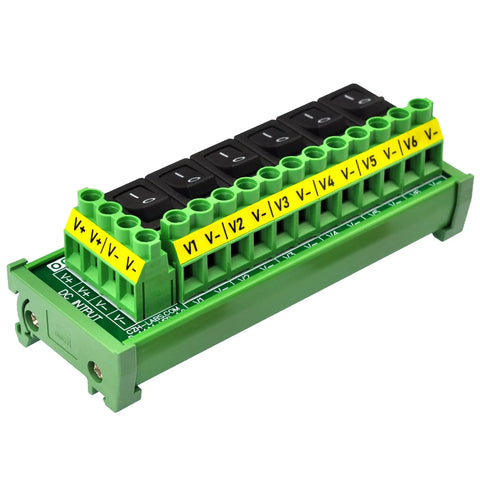

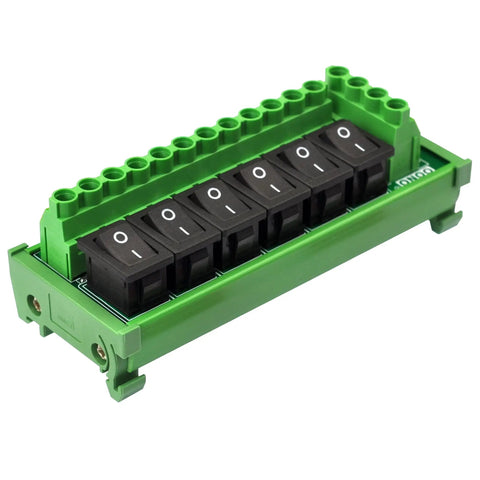

Beefy Six Channel DC Power Distribution Strip With DIN Rail Mount And Rocker Switches, 0 To 50V, 30A Total, Each Channel Up To 10A, 6 Outputs, Wire Up To 26 To 10 AWG, Heavy Duty Industrial Power Control Module

Heavy-Duty 6-Channel DC Power Strip with DIN Rail
✔️ 0-50V input, 30A total, 6 channels, 10A max per channel

The six-channel DC power distribution strip is a rugged DIN rail mounted power hub designed for industrial control panels, automation racks, and bench setups. It distributes DC power across six outputs, each with a rocker switch for on/off control, and LED indicators to show which channels are active. Pack size: single unit.

✅ Working voltage DC 0 to 50V; maximum total input current 30 A; 6 outputs; each channel up to 10 A
✅ Input terminals pitch 7.62 mm (0.3 in); supports 26-10 AWG wiring; stripping length 8 mm (0.315 in); M3 slotted screw
✅ Output terminals pitch 7.62 mm (0.3 in); wire size 26-10 AWG; stripping length 8 mm (0.315 in); M3 slotted screw
✅ Rocker switches with LED power-on indication for each channel
✅ DIN rail mount carrier supports 35 mm wide rail (1.38 in); FR-4 fiberglass dual copper layers PCB

💡 What is a six-channel DC power distribution strip used for in automation cabinets?

Handy solution for powering multiple devices from one DC supply inside control panels.

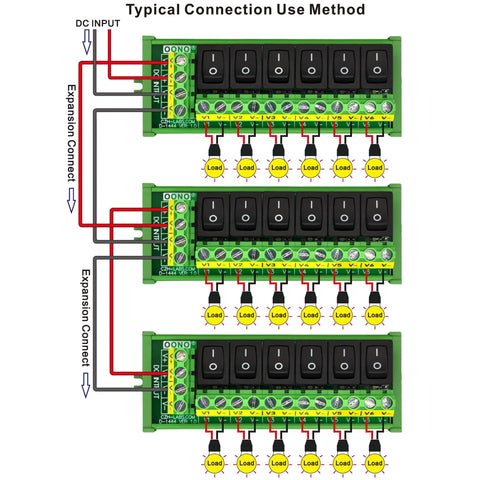

- Power multiple sensors, controllers, and test rigs from a single source (0-50 V, up to 30 A total) - Keeps wiring neat and organized on a DIN rail by consolidating power rails - Each channel offers handy on/off control with LED indicators for quick status checks - Expandable by linking other modules for scalable power distribution in larger systems
