Beefy S Type Load Cell For Tension And Compression With 3m Cable Scale Sensor 5kg To 5t Range IP65 IP66 Waterproof High Precision 2.0 mV per V 0.2 percent Accuracy Industrial Grade Force Weight Sensor For Scales

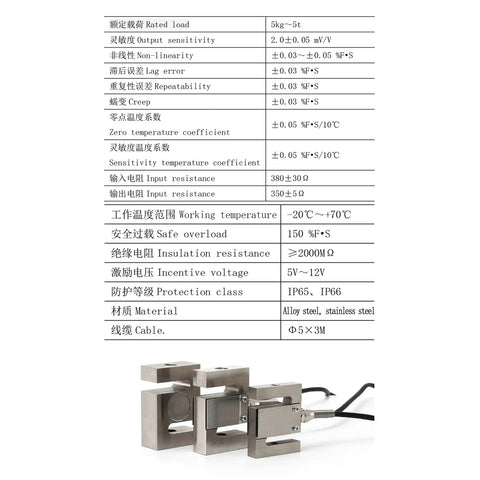

✔️ 2.0 mV/V sensitivity, 0.2% accuracy, -20°C to +70°C, IP66
The S-Type Load Cell is a precision force sensor used for tension and compression measurements in industrial scales, testing rigs, and weighing systems. Its rugged design handles tough environments while delivering accurate readings with a fixed 3 m cable for easy mounting.

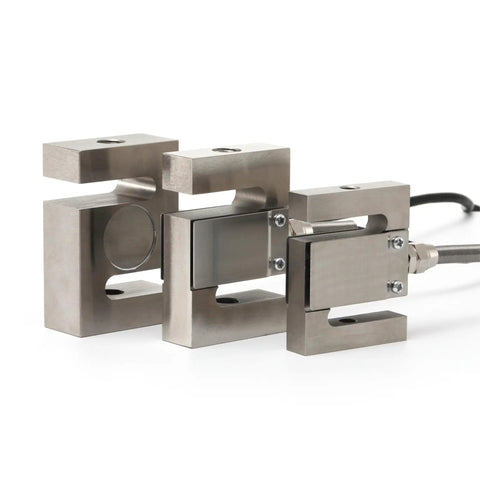

✅ Range: 5 kg-5000 kg
✅ Sensor type: S-Beam (S-Type) load cell, easy to install
✅ Sensitivity: 2.0 ±0.05 mV/V, Accuracy: 0.2% (max range)
✅ Temperature range: -20°C to +70°C
✅ Protection: IP66 rated, dust and water resistant
✅ Tension rating: Built-in protection line withstands 50 N

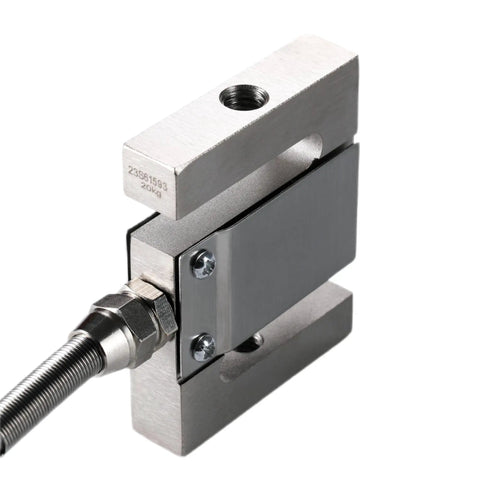

✅ Mounting: End threaded holes for rings or fixtures

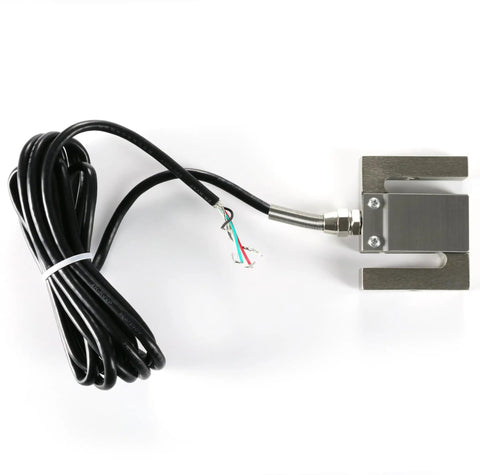

✅ Cable length: 3 m
💡 What is a load cell used for in industrial weight and force measurement systems?
Load cells translate mechanical force into electrical signals for precise readings in weighing and testing setups.
- 2.0 mV/V sensitivity and 0.2% accuracy support precise tension and compression readings- Compatible with amplifiers, PLCs, and PC data systems in industrial scales
- IP66 rugged housing helps resist dust and water in harsh environments✝️
