Beefy, Pro Grade CNC Linear Actuator Kit With Fully Enclosed Aluminum Stage, 600mm Travel, Double Linear Slide Rails For X Y Z Axis Machining, Dustproof Profile, Smooth Motion, Ideal For Precise CNC Milling And 3D Print Shops

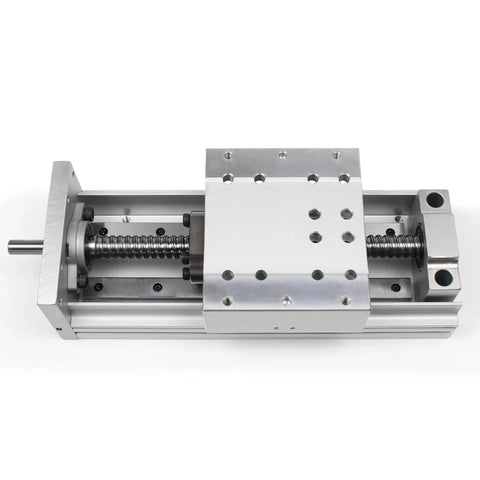

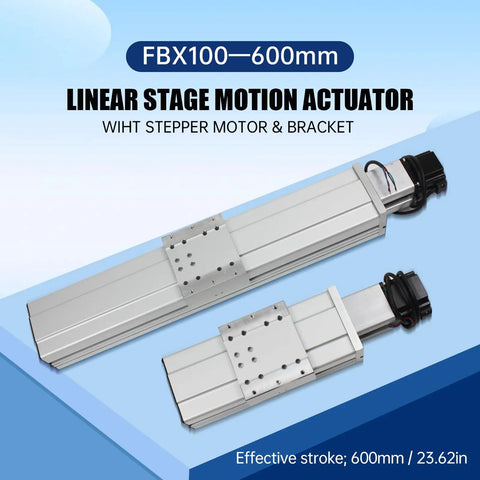

CNC Linear Actuator Kit with Enclosed Aluminum Stage 600mm Travel

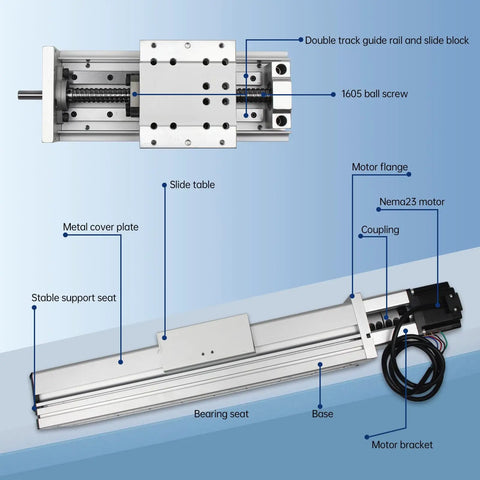

✔️ 600mm travel, dustproof profile, 1605 ball screw, dual MGN15 rails

Beefy CNC linear actuator kit with a fully enclosed aluminum stage and 600mm travel, designed for precise X, Y, Z motion in milling and 3D printing environments. This setup excels in dusty workshops, offering a rugged, reliable platform for tight tolerances and repeatable positioning.

✅ Closed profile body with dustproof tape/end cover blocks chips and dust, protecting lubricants.
✅ 1605 ball screw transmission with flange nut offers low friction and ~90% efficiency, reducing motor load.
✅ MGN15 linear guides (double track) form a robust slide unit with sealed bearings.

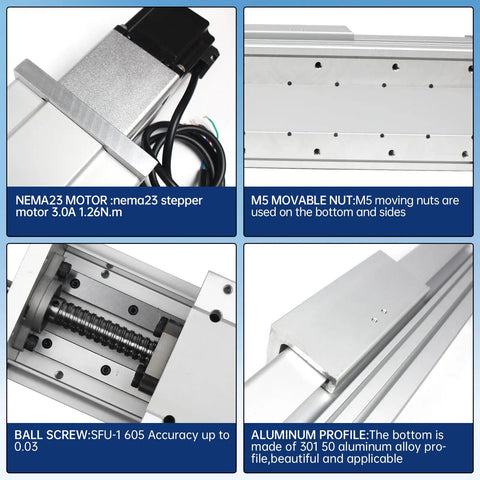

✅ 57x57x56 mm hybrid stepper motor, 1.26 N m torque, 3A, 12-36V, 1000 RPM.
✅ Dustproof aluminum stage with integrated dust baffle and brake-ready design for controlled milling and printing tasks.
✅ Horizontal load rating up to 25 kg, vertical up to 10 kg; can be used as single axis or XYZ assembly.
✅ Optional ceramic bearings for longer life and sealed variants for harsh environments.

💡 What is a pillow block bearing used for in CNC and automation setups? It's a handy, common choice for keeping shafts aligned in moving-axis systems.

- supports rotating shafts in linear motion assemblies for CNC mills and 3D printers - reduces shaft runout and wear, boosting positioning accuracy - easy to mount with standard fasteners and protective seals - compatible with sealed ball bearing and ceramic variants for longevity
