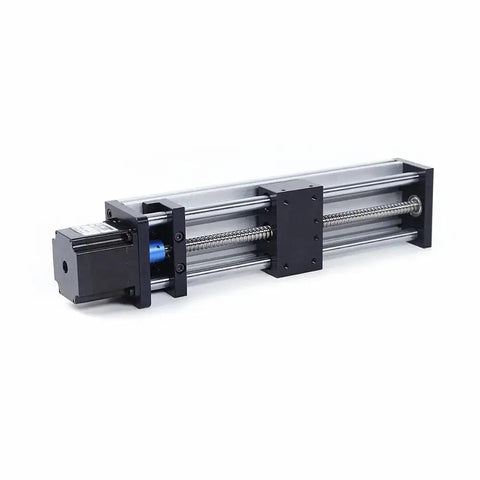

Beefy Motorized Linear Guide Actuator Table With 200mm Travel And 8 Inch Stroke CNC Linear Rail Slide Stage With Ball Screw System And 57 Stepper Motor For DIY CNC Router Milling Machine
✔️ 200mm stroke, 57-stepper motor, 24V, 600 rpm, 44lb cap
Precision motorized linear guide table designed for DIY CNC routers, milling machines, laser engravers, and automation setups. This compact unit provides accurate X-axis motion with a robust aluminum base and sealed components for reliable operation.
✅ Travel: 200 mm (7.87 in) with 4 mm lead and 12 mm ballscrew diameter
✅ Accuracy: ±0.03 mm (0.001 in) for repeatable positioning
✅ Load capacity: Horizontal up to 20 kg (44.09 lb); Vertical up to 10 kg (22.05 lb)
✅ Speed: 40-100 mm/s (1.57-3.94 in/s) with 600 rpm motor
✅ Motor: 57-stepper, 72 W, 24 V, 3 A, torque 1 N·m
✅ Includes: 1 x Ball Screw Guide Sliding Table, 1 x 57 Stepper Motor
💡 What is a motorized linear guide used for in CNC machines? This handy system provides precise motion for accurate positioning in DIY setups. - It enables repeatable movement along a straight path - It lets you build compact multi-axis rigs - It improves rigidity and workflow in automated setups
