Beefy Lathe Chuck Spindle Assembly Kit With 3 Jaw Chuck And 750W 110V Brushless Servo Motor Speed Controller Through Hole 45mm 160mm Spindle Range For CNC Rotary Axis

Lathe Chuck Spindle Kit with a 3-Jaw Chuck for CNC Axis

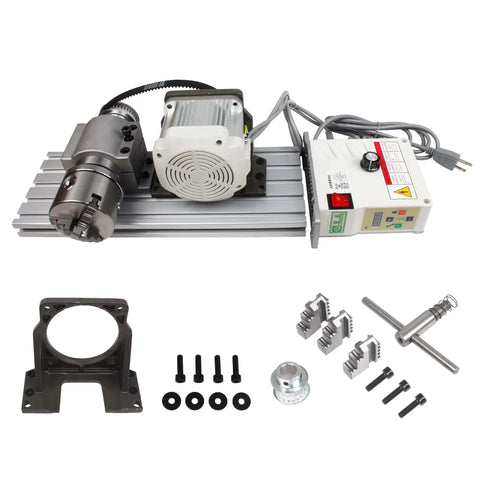

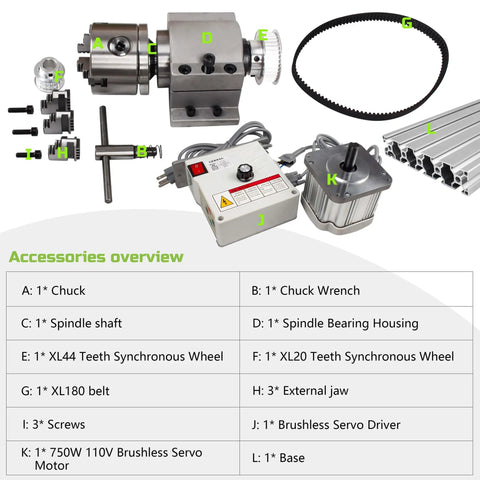

✔️ 1 set: base, chuck, 3 jaws, spindle, motor, driver, 45mm through-hole

This kit bundles a complete lathe chuck spindle assembly designed for CNC rotary axis setups. It is commonly used in metalworking CNC lathes and custom machining projects to hold and rotate workpieces with precise alignment.

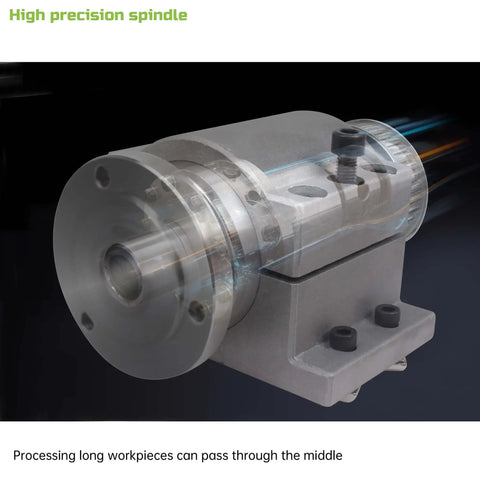

✅ Through-hole bore 45 mm; center height 62.5 mm
✅ K11-160 chuck supports jaw ranges: 3-55 mm, 50-160 mm, 55-145 mm
✅ Max speed 2500 rpm; max torque 160 Nm; concentricity <0.03 mm
✅ 750 W brushless servo motor; speed 200-6500 rpm; overcurrent/overvoltage/short-circuit protection
✅ Brushless servo motor driver with remote control, real-time display, soft start
✅ 15 mm threaded shaft mounting; compatible with ER chucks and triangular belt wheels

💡 What is a lathe chuck spindle kit used for in CNC rotary axis applications? This handy setup makes clamping and rotating workpieces precise for CNC machining.

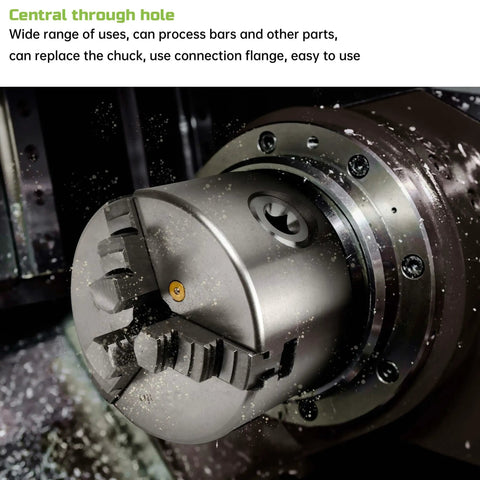

- Through-hole bore 45 mm enables long workpieces to pass through - K11-160 chuck with adjustable jaws: 3-55 mm, 50-160 mm, 55-145 mm - 750 W brushless servo motor with 200-6500 rpm and built-in protections
