High Torque Nema 11 Stepper Motor 2 Phase 1.8 Degree Bipolar 13 Ncm For 3D Printers DIY Robots And CNC With 28 Cable 1 Meter Lead And 4 Wire Easy Integration For Precise Motion Control
✔️ 1 unit, 2-phase bipolar, 1.8° step, 13 Ncm torque, 28x28x44.8 mm

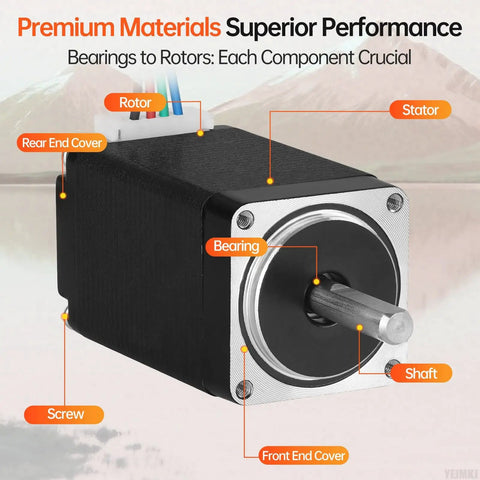

This compact NEMA 11 high-torque stepper delivers precise motion control for small-format machines like 3D printers, DIY robots, and CNC units. Its tiny footprint makes tight installations straightforward and helps simplify system integration.
✅ 2-phase bipolar configuration for reliable microstepping
✅ 1.8° step angle for precise positioning
✅ 13 Ncm torque for compact power in small machines

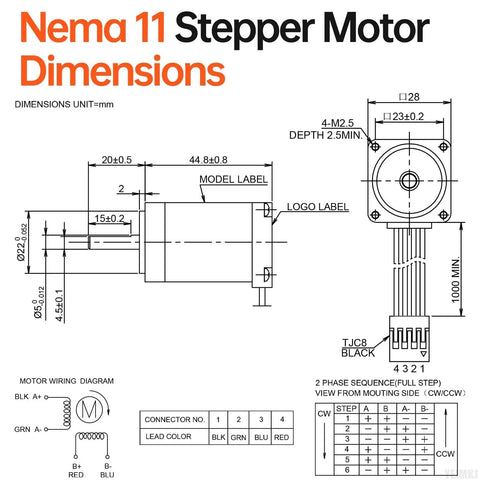

✅ Frame size 28 x 28 x 44.8 mm (1.11 x 1.11 x 1.77 in)
✅ Shaft Ø5 mm; length 20 ± 0.5 mm (0.79 in)
✅ Cable: 1 m, 4-wire lead (A+ A- B+ B-)
| Dimension | Metric (mm) | Imperial (in) |
|---|---|---|
| Frame size | 28 x 28 x 44.8 | 1.11 x 1.11 x 1.77 |
| Shaft diameter | 5 | 0.197 |
| Shaft length | 20 ± 0.5 | 0.79 |
| Cable length | 1 | 39.37 |
💡 What is a NEMA 11 stepper motor used for in small systems? A handy choice for precise motion in compact machinery. - small, precise positioning for 3D printers, hobby CNCs, and robotics - easy to integrate with common drivers thanks to a standard 4-wire lead - reliable performance with consistent torque at low speeds
✝️
