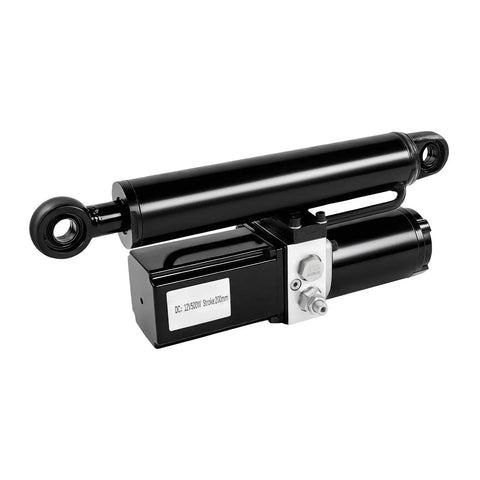

Beefy Heavy Duty 12V Linear Actuator Delivers 4409 Lbs Thrust With 800W Motor At 2850RPM 7.9 Inch Stroke For Agriculture Automotive Industry And Manufacturing Electro Hydraulic Precision For Heavy Lifting And Smooth Bidirectional Control
✔️ 2T thrust, 200mm stroke, 800W motor at 2850RPM, IP54.
This heavy-duty actuator blends electrical control with hydraulic power to lift and position loads precisely, making it ideal for dump trailers, lifting platforms, solar tracking systems, and heavy industrial equipment.
| Dimension | Metric | Imperial |
|---|---|---|
| Stroke | 200 mm | 7.87 in |
| Cylinder Diameter | 50 mm | 1.97 in |

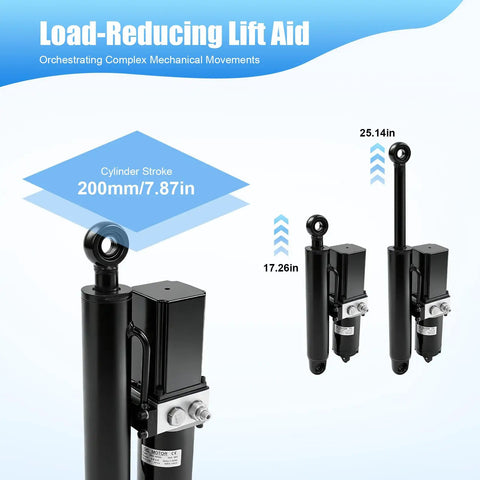

| Retracted Length | 43.85 cm | 17.26 in |
| Extended Length | 63.85 cm | 25.14 in |
| Center distance between holes | 38.5 cm | 15.16 in |
| Net Weight | 12 kg | 26.46 lb |
✅ Thrust: 2T (4409 lbs)
✅ Stroke: 200 mm (7.87 in)
✅ Speed: 25 mm/s (0.98 in/s) loading speed
✅ Motor: 800W, 12V, 2850RPM

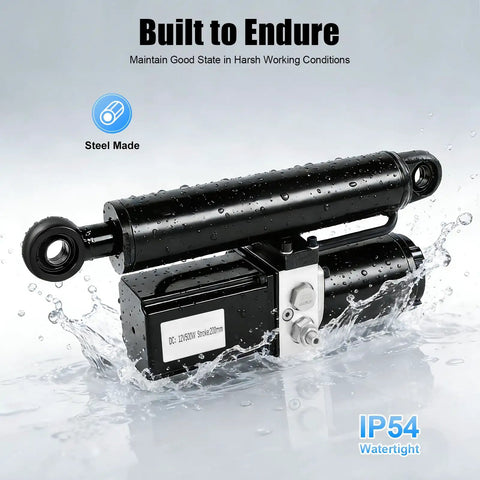

✅ IP54 rated housing
✅ Self-locking and overload protection
💡 What is a heavy duty 12V electro-hydraulic linear actuator best used for in industrial lifting and positioning tasks?
This handy device blends electric control with hydraulic power to move heavy loads smoothly and safely.
- Heavy lifting on dump trailers and lifting platforms
- Bidirectional motion with load holding and overload protection
- Outdoor-ready IP54-rated housing for dusty, wet sites
