Beefy Dividing Head With Universal Indexing Plate For Milling Machine Rotary Table Vertical And Horizontal 4 5 6 Inch Tailstock CNC Mill Accessory For Precise Drilling And Milling
✔️ 4/5/6 in chuck sizes, two interchangeable plates, tilt head.

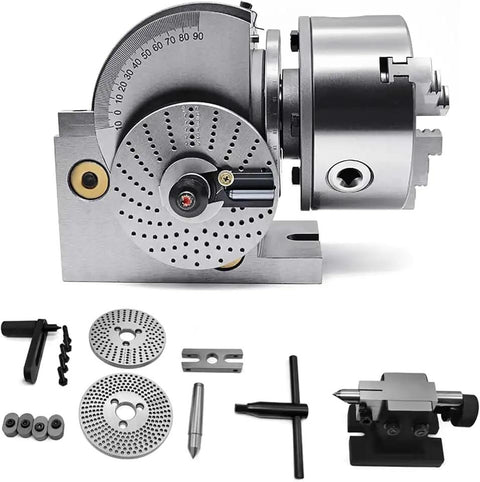

The beefy dividing head with universal indexing plate is built for milling machine rotary tables, suitable for precise drilling and milling on metal and wood. The headstock tilts from 10° below horizontal to 90° from vertical, allowing use with different material sizes. The package includes a tail stand for added stability and two interchangeable indexing plates in addition to a direct indexing plate, enabling exact spacing between cuts. This device is widely used in automotive, mold making, and general machinery applications. Center heights are 100mm/3.9in and 128mm/5in with chuck diameters of 4in/100mm, 5in/125mm, and 6in/160mm. Chuck type is 3-jaw, gear ratio 1:90. Clamping range: 2-83mm/0.07-3.2in for 4in; 2-110mm/0.07-4.3in for 5in; 3-160mm/0.1-6.3in for 6in. Weighs 19kg/41.8lb for 4in, 21kg/46.3lb for 5in, 38kg/83.7lb for 6in. Package contents: 1 x indexing head + all accessories.
✅ Chuck diameter options: 4in/100mm, 5in/125mm, 6in/160mm
✅ Center heights with two options: 100mm/3.9in and 128mm/5in
✅ Weight range: 19kg/41.8lb, 21kg/46.3lb, 38kg/83.7lb
✅ Gear ratio: 1:90
✅ Clamping ranges: 2-83mm/0.07-3.2in; 2-110mm/0.07-4.3in; 3-160mm/0.1-6.3in
✅ Tilt range: 10° below horizontal to 90° from vertical; supports milling, drilling, boring
💡 What is a dividing head used for in milling machines and how does the universal indexing plate improve precision? A handy tool for precise rotation and indexing of workpieces, especially on curved surfaces and long holes. - Improves angular indexing for curved surfaces - Works with universal indexing plate and interchangeable plates - Compatible with 4in/100mm, 5in/125mm, 6in/160mm chuck sizes
✝️
