Beefy Built Tough Air Cylinder Double Acting Pneumatic Buffer With Aluminum Alloy Rod SC100X50 4 Inch Bore 2 Inch Stroke Single Rod Design High Pressure 1 MPa M20X1.5 Piston Port Ideal For Industrial Automation

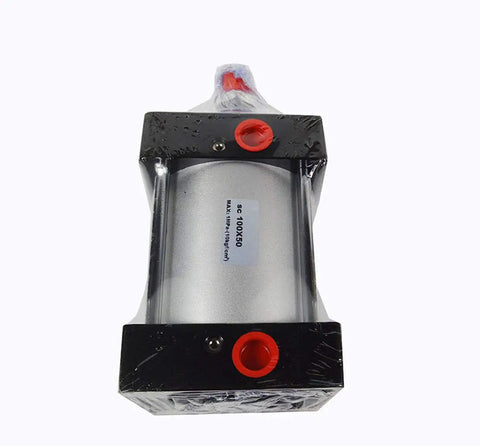

SC100X50 Pneumatic Air Cylinder for Precision Motion
✔️ Bore 100mm (4"), stroke 50mm (2"), aluminum alloy rod, max 1 MPa

This double-acting pneumatic buffer is used in automation lines for push/pull and position control. Built with an aluminum alloy body and chrome-plated rod, it resists wear and corrosion in tough environments.

✅ Bore: 100 mm (4 in)
✅ Stroke: 50 mm (2 in)
✅ Action: Double acting
✅ Rod: Single rod, chrome-plated
✅ Max operating pressure: 1.0 MPa
✅ Piston port size: M20X1.5
✅ Piston speed: 50-800 mm/s
✅ Materials: Aluminum alloy body, copper sleeve for stability, sealing ring

💡 What is a pneumatic air cylinder used for in industrial automation?

In short, it’s a handy actuator that converts compressed air into linear motion for automation tasks.

- Handy for pushing, pulling, and lifting on production lines

- Provides fast, repeatable movement with simple valve control

- Works with standard ports like M20X1.5 for easy setup
