Beefy Axial Fan For Spindle And Servo Motors 400/480VAC 0.26A Five Blade Sheet Steel Black Finish With Ball Bearing Cooling Solution That Replaces A2D210-AB10-05

Heavy-Duty Axial Fan for Spindle Motors, 400/480VAC (Single)
✔️ 210mm blade, 5 blades, 0.26/0.27A, 2750/3250 RPM, single unit

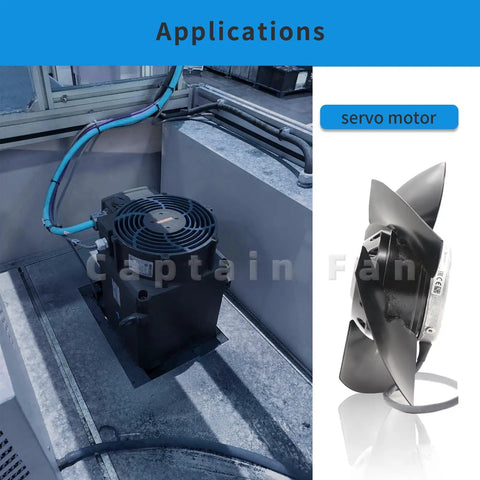

The axial cooling fan is designed for spindle and servo motors in CNC machines and automation systems. It provides efficient heat removal in high-speed spindles and motor drives.

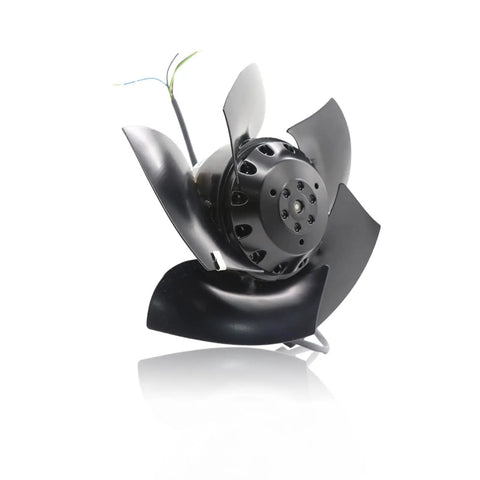

✅ 5-blade sheet steel axial fan with black painted finish
✅ Ball bearing for long life in demanding service

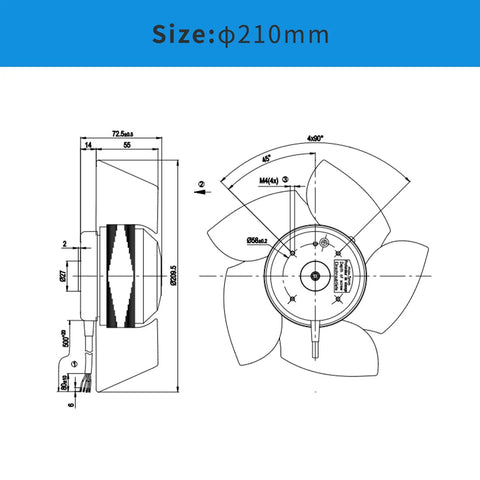

✅ Blade diameter 210 mm; net weight 1.62 kg
✅ Nominal voltage 400/480 VAC; 50/60 Hz; 3-phase

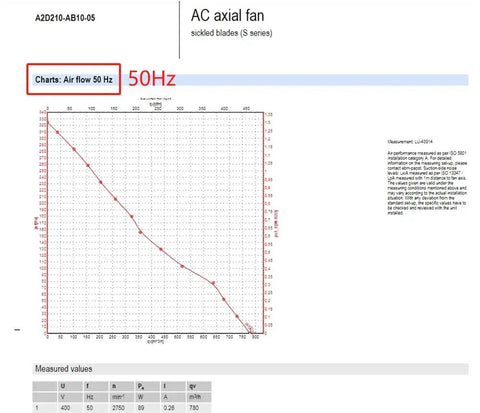

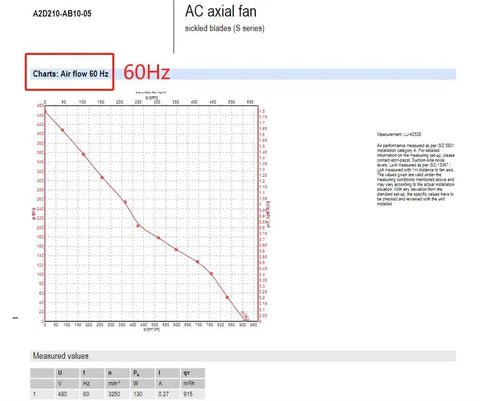

✅ Power consumption 89/130 W; speed 2750/3250 min-1
✅ Replaces A2D210-AB10-05 with compatible motor (M2D068-CF)

💡 What is an axial fan used for in spindle motor cooling applications?

An axial fan provides targeted cooling for motor housings and spindles in CNC machines and automation gear. - sealed ball bearing design for long life in high-temp setups - 400/480 VAC three-phase compatibility for easy integration - 210 mm blade diameter for compact mounting and high flow - improves motor longevity by removing heat under heavy load
