Beefy 90 Degree Planetary Reducer Gearbox For Nema 23 And Nema 34 Servo Motors, 3:1 To 100:1 Ratios, PVF Series With 6.35mm/8mm/11mm/14mm Input Shafts, Right Angle Helical Gearbox, High Efficiency Up To 95 Percent

Right-angle planetary gearbox for NEMA 23/34 motors ✔️ PVF planetary reducer, 3:1-100:1, 6.35/8/11/14 mm shafts

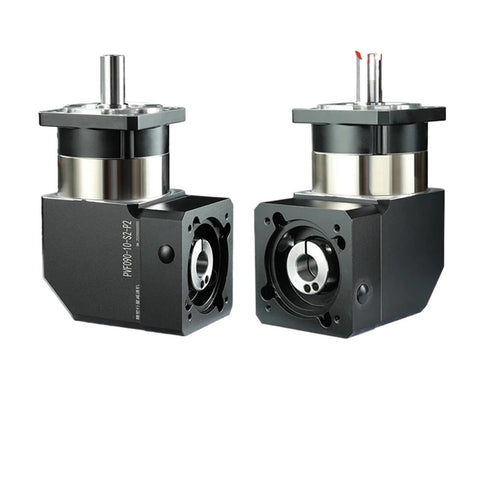

This compact 90-degree right-angle planetary gearbox is designed to drive NEMA 23 and NEMA 34 servo motors in tight spaces. It’s a precise, efficient reducer ideal for CNCs, robotics, and automated motion systems where space matters.

✅ Gearing arrangement: planetary with 3:1 to 100:1 ratios
✅ Input shaft options: 6.35/8/11/14 mm shafts (0.25/0.315/0.433/0.551 in)
✅ Efficiency: up to 95% (L1) and reliable performance
✅ Output: 90-degree right-angle helical gearbox for compact layouts
✅ Included: 1x planet reducer, 1x key, 4x install screws
✅ Max input speed: 6000 rpm; rated input 3000 rpm

💡 What is a right-angle planetary gearbox used for in motion control? A handy drive solution for compact layouts that need torque multiplication and direction change. - High torque density in tight spaces - Smooth, precise motion with low backlash - Easy integration with NEMA 23/34 servo motors - Improves efficiency in robotic and CNC axes
