Beefy 8 Inch Stroke Linear Actuator 8000N 1700Lbs 12V High Force Electric Actuator With Mounting Brackets IP43 0.157 Inches Per Second For Lifting Systems Electric Beds And Doors
✔️ 12V DC, 8in stroke, 1700 lbs lift, IP43, 0.157 in/s speed
The 8000N linear actuator is built to push or pull heavy loads with precision. It’s designed for industrial lifting systems, electric beds, door openers, and marine or RV equipment. With mounting brackets included, setup is straightforward and secure in tight spaces or harsh environments.

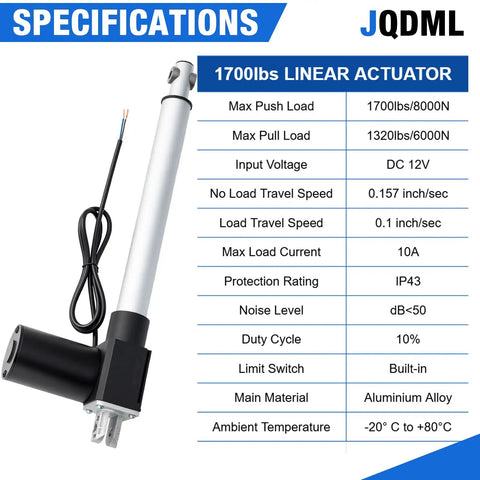

✅ Voltage: 12V DC

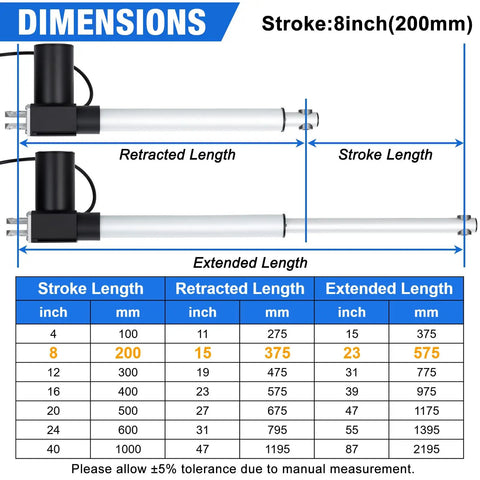

✅ Stroke: 8 inches (200 mm)
✅ Retracted length: 15 inches (375 mm)
✅ Extended length: 23 inches (575 mm)
✅ No-load speed: 0.157 in/s (4 mm/s)
✅ Maximum load: 1700 lbs (8000 N)
✅ Maximum current draw: 10 A
✅ IP43 rating; aluminum housing; -20°C to +80°C
✅ Self-locking with non-adjustable limit switches
💡 What is a heavy-duty linear actuator used for in lifting and positioning?
These handy devices power motion in a range of equipment, delivering controlled push/pull to heavy loads.
- Industrial lifting systems- Doors, beds, seating platforms
- Marine, RV, and outdoor gear
- Precise end-of-stroke positioning
