Beefy 5MT CNC Live Center for Heavy Duty Turning, Morse Taper 5 High Performance Live Center with 60 Degree Point, 1.77 Inch Point, 2.01 Inch Length, 2.76 Inch Head, 4409 Lb Load at 3000 RPM

Heavy Duty Morse Taper Live Center for CNC Turning

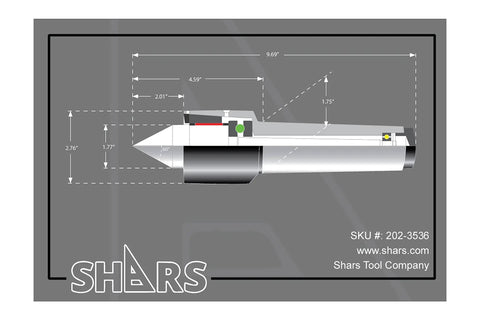

✔️ Morse Taper 5, 60° point, 1.77 in dia, 2.01 in length, 1 pc

Built for heavy-duty CNC turning, this beefy live center uses a Morse taper 5 shank and a 60-degree point to support long parts at high RPM. Ideal for lathes and CNC turning centers where precise alignment and strong load capacity matter.

✅ Shank size: Morse taper 5
✅ Max RPM: 3000
✅ Load capacity: 4409 lb
✅ Point angle: 60°
✅ Point diameter: 1.77 in
✅ Point length: 2.01 in
✅ Head diameter: 2.76 in
✅ TIR: 0.0002 in

💡 What is a live center used for in CNC turning?

A handy tool for supporting the end of a rotating shaft, keeping it true and reducing runout at high RPM. - Supports rotating workpieces and reduces runout for better finish - Handy for high-speed turning and heavy-duty machining - Uses Morse taper 5 for secure mounting in CNC lathes
