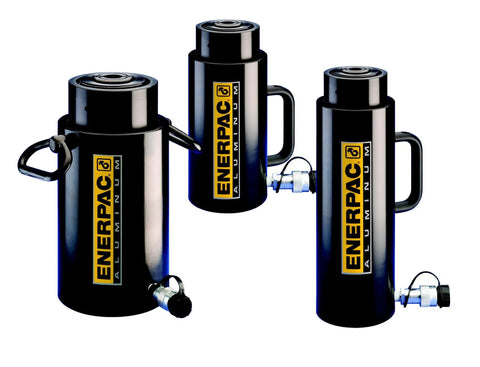

Beefy 50 Ton Single Acting Aluminum Lock Nut Hydraulic Cylinder With One Port One Point Nine Seven Inch Stroke Spring Return Lightweight Aluminum With Hard Coat Finish Durable Long Lasting
✔️ 50-ton single-acting aluminum lock nut cylinder, 1.97" stroke
This single-acting hydraulic cylinder is built for lifting or pushing heavy loads in industrial settings. It's commonly used in manufacturing, maintenance, rigging, and field service where quick setup and secure load retention matter.
✅ Cylinder capacity: 50 tons (54.9 max)
✅ Stroke length: 1.97 inches
✅ Effective area: 10.99 square inches
✅ Oil capacity: 21.65 cubic inches
✅ Plunger diameter (threaded): 3.15 inches
✅ Collapsed height: 9.30 inches
✅ Extended height: 11.27 inches
✅ Outside diameter: 5.12 inches
✅ Weight: 20.5 lb
✅ Port: CR-400 quick-connect female coupler for HC-series hoses
✅ Baseplate and saddle included
✅ Composite bearings increase side-load resistance
✅ Lock nut provides long-term load holding
✅ Built-in stop ring prevents over-extension to full stroke
💡 What is a single-acting hydraulic cylinder used for in industrial lifting and load holding?
Handy for controlled force and secure load retention in shops, plants, and field work.
- Single-acting hydraulic cylinders convert hydraulic pressure to linear force with a spring return and lock nut - Aluminum bodies with hard-coat finish keep weight down and extend life - CR-400 quick-connect port makes hose hookup easy with HC-series hoses - Compliance with ASME B-30.1 and ISO 10100 ensures crane/hoist safety
