Beefy 5 HP Three Phase General Purpose Motor With 184TC Frame 208 To 230 Or 460 Volt AC 60 Hz TEFC Enclosure C Face Mounting Full Load Amps 13.2 And 6 A Insulation Class F 1.0 Service Factor 16 Inch Overall Length
✔️ 208-230/460V, 60 Hz, 5 HP, 1.15 SF, TEFC, 184TC, 13.2/6 A FLA

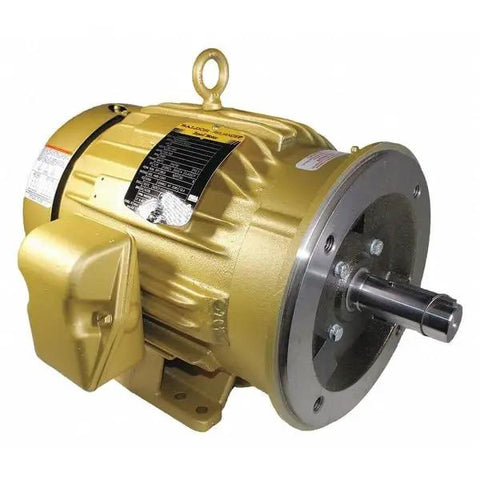

This rugged general purpose three-phase motor is built for continuous duty in industrial settings such as pumps, conveyors, machining centers, and packaging lines. Its totally enclosed fan cooled (TEFC) design helps keep dust, moisture, and coolants at bay, while the C-face mounting adds flexible fitment on a variety of machine frames.
✅ Frame: 184TC
✅ Voltage: 208-230/460V AC
✅ Hz: 60
✅ Power: 5 HP
✅ Speed: 1750 rpm
✅ Service Factor: 1.15
✅ Enclosure: TEFC
✅ Mounting: C-Face
✅ Full Load Amps: 13.2/6 A
✅ Insulation Class: F
✅ Bearings: Ball bearings
✅ Frame Material: Cast Iron
✅ Ambient Temp: 40°C
✅ Duty: Continuous
💡 What is a general purpose three-phase motor used for? Handy for a range of machines.
- general purpose motor for pumps, fans, conveyors
- TEFC enclosure protects windings in dirty environments
- 184TC frame fits common mounting patterns
- 1750 rpm speed keeps belts in sync
