Beefy 40 Inch Stroke Linear Actuator With 8000N 1700 Lbs Lift Capacity 12V DC 0.157 Inches Per Second High Force Electric Actuator With Mounting Brackets For Lifting Systems Beds And Doors
✔️ Stroke 40 in, extend 87 in, retract 47 in, 1700 lb lift, 12V DC
This heavy-duty, 12V DC linear actuator is built for powerful lifting and precise positioning in industrial and home setups. It’s commonly used in lifting systems, doors, beds, and furniture, and it’s compatible with marine and RV equipment for reliable, long-term operation. The unit features an aluminum housing for durability and IP43 protection to handle rugged environments.

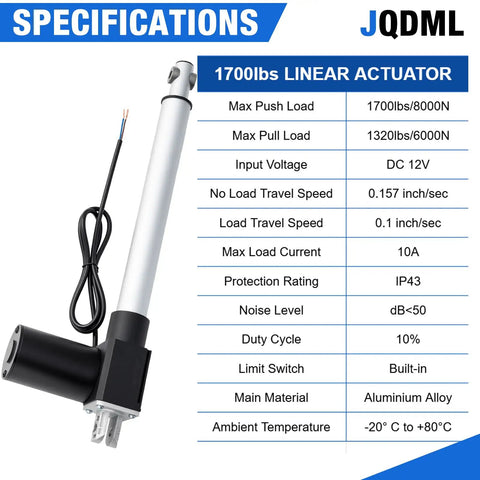

✅ Stroke length: 40 in (1000 mm)
✅ Extended length: 87 in (2195 mm)
✅ Retracted length: 47 in (1195 mm)
✅ Maximum load: 1700 lb (8000 N)
✅ No-load speed: 0.157 in/s (4 mm/s)
✅ Voltage: 12 V DC
✅ Current draw: up to 10 A

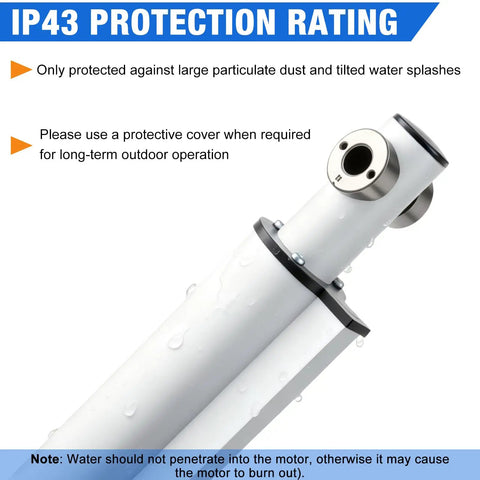

✅ IP43 protection; aluminum housing; -20°C to +80°C
✅ Noise level: below 50 dB

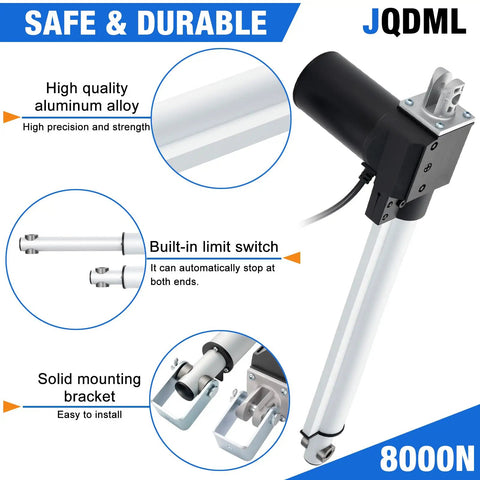

✅ Self-locking with fixed limit switch
💡 What is a heavy-duty linear actuator used for?
- Handy for lifting and positioning in industrial systems
- Pushes or pulls heavy loads with high torque for doors, beds, and panels
- Ideal for marine, RV, and outdoor gear where controlled motion matters
- Self-locking with fixed limit switch ensures repeatable stops and safety
