Beefy 3/4-16 Chromoly Heim Joints Kit With 5/8 Bore Left And Right Hand Threads Includes Jam Nuts Heat Treated And Hard Chrome Plated For Tough Auto Builds And Off Road Projects
✔️ LH/RH rod ends with 5/8 bore and jam nuts included
These chromoly rod ends use heat-treated chromoly steel with hard chrome plating for durability, designed for high-stress auto builds and off-road linkages. Kit includes one left-hand and one right-hand rod end plus zinc-coated jam nuts, ready for mounting and adjustment.

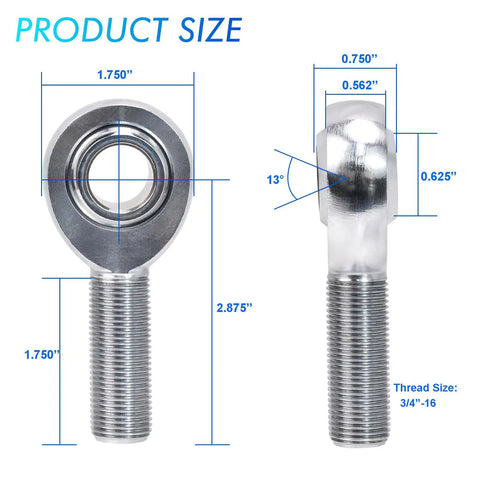

✅ Right-hand rod end, 3/4-16; bore 5/8 in (15.88 mm); length 1.75 in (44.45 mm)
✅ Left-hand rod end, 3/4-16; bore 5/8 in (15.88 mm); length 1.75 in (44.45 mm)
✅ Includes jam nuts: LH and RH; zinc-coated for durability
✅ Heat-treated chromoly, hard chrome plated
✅ Static radial load: 40,572 lbs (18,430 kg); Center line 2.875 in (73.03 mm)
✅ Width 1.75 in (44.45 mm); Ball width 0.75 in (19.05 mm)
💡 What is a 3/4-16 chromoly heim joint used for in off-road steering linkages?
It's a handy, strong connector for steering and suspension components in rugged vehicles.
- High-strength chromoly construction for durability- Chrome plating resists wear and corrosion in harsh environments
- Works with 3/4-16 threaded components and 5/8 bore
- Includes LH/RH rod ends and jam nuts for easy setup✝️
