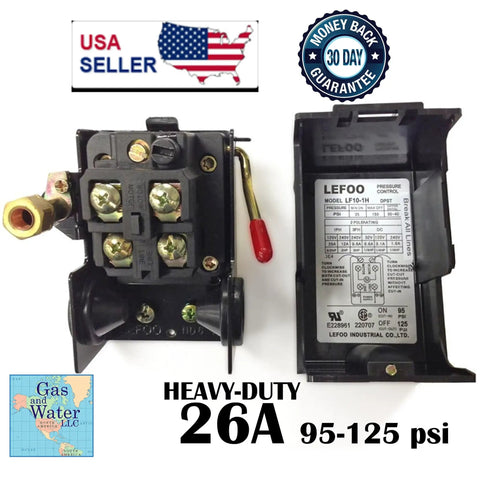

Beefy 26 Amp One Port Pressure Switch For Air Compressors 95 To 125 Psi Control Valve 110 230V Heavy Duty UL Listed CSA Certified DPST For All Air Compressor Uses
✔️ 1-port DPST, 26A, 110/230V, UL Listed, single unit
This heavy-duty pressure switch is designed for air compressors and is typically used to automatically start and stop the motor when preset pressure is reached. It supports 110/230V operation and is UL listed and CSA certified for safety. The LF10-L1 one-port model features a 1/4 inch NPT port, a 95-125 PSI operating range, and a 500 PSI burst rating, making it ideal for standard air tool setups.
✅ 26A rating; DPST; 110/230V
✅ 1-Port 1/4" NPT port; 1/4" compression unloader
✅ Factory on/off setting 95-125 PSI; pressure range 35-150 PSI
✅ Burst pressure 500 PSI; NEMA 1 enclosure
✅ Temp range -22°F to 257°F
✅ UL Listed & CSA Certified
💡 What is a pressure switch used for in air compressors?
It helps automatically manage when the compressor starts and stops by monitoring system pressure.
- handy control for maintaining stable cut-in/cut-out pressure
- works with 110/230V systems, single or three-phase power
- UL Listed and CSA certified for safety and reliability
- 1/4" NPT port with diaphragm actuation for dependable operation
