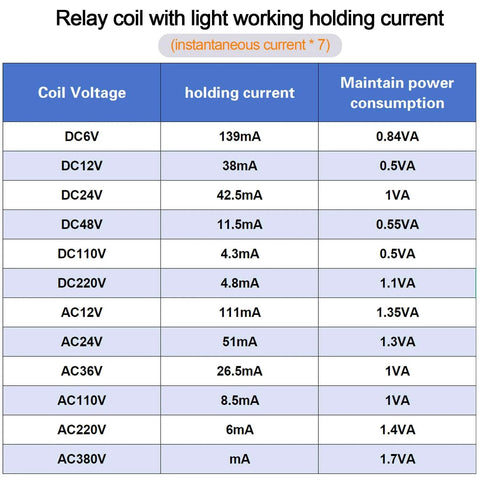

Table showing relay coil voltage, holding current, and power consumption for various DC and AC voltages, including DC24V at 42.5mA.

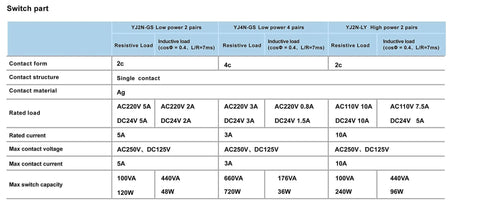

Table showing specifications of switch parts including contact form, material, and rated load for YZ9N-GS and YZ9N-LY models.

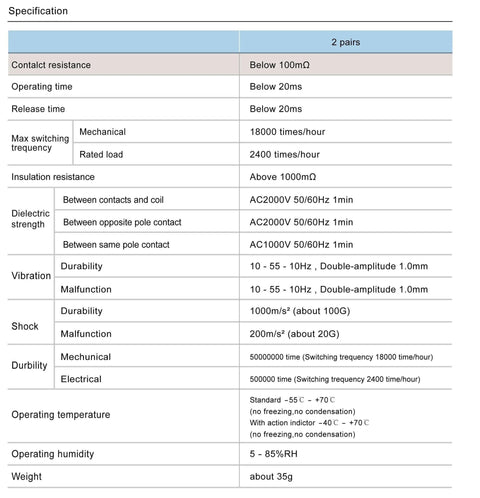

Specifications table for Beefy 24V DC DPDT Electromagnetic Relay Kit, detailing contact resistance, operating time, and durability.
Beefy 24V DC DPDT Electromagnetic Relay Kit With 8-Pin Socket Base, 10 Amp Coil With LED Indicator, shown from side view

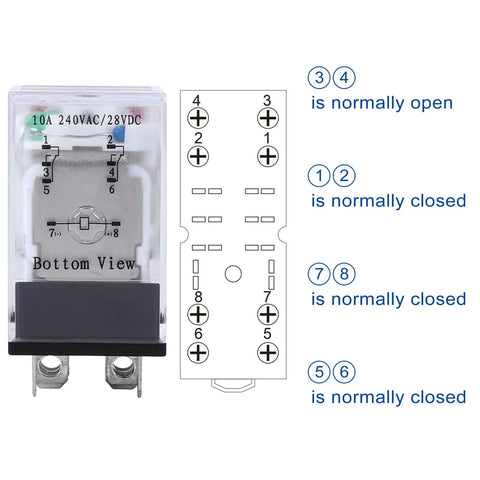

Diagram of Beefy 24V DC DPDT Electromagnetic Relay Kit With 8-Pin Socket Base, showing contact configuration, normally open and closed.
Copper enameled wire and LED light details of Beefy 24V DC DPDT Electromagnetic Relay Kit With 8-Pin Socket Base, 2NO 2NC, 2 Pack

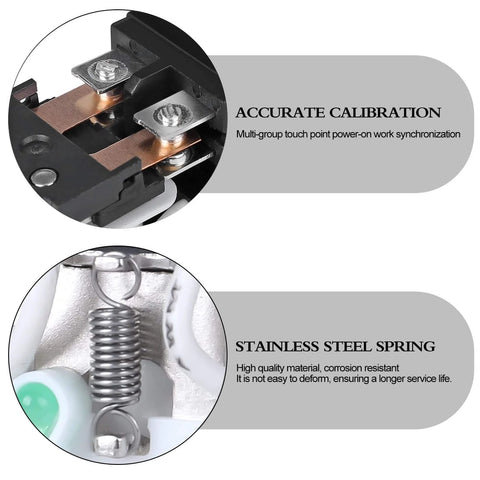

Close-up of Beefy 24V DC DPDT Electromagnetic Relay Kit with 8-Pin Socket Base, showing calibration contacts and stainless steel spring.
Beefy 24V DC DPDT Electromagnetic Relay Kit With 8-Pin Socket Base, 10 Amp Coil With LED Indicator, 2NO 2NC, DIN Rail Compatible, 2 Pack

Beefy 24V DC DPDT Electromagnetic Relay Kit With 8-Pin Socket Base, 10 Amp Coil With LED Indicator, 2NO 2NC, DIN Rail Compatible, Plug And Play Power Relay Module For Industrial Machinery And Car Starters, 2 Pack

$49.98 $80.00you save $30.02
SKU: VXB09B1MZKYQ





High-Current 24V DC DPDT Relay Kit, 2-Pack, DIN Rail
✔️ 24VDC coil, DPDT 2NO 2NC, 8-pin socket, 10A, 2-pack

This DPDT electromagnetic relay kit provides reliable on/off control for industrial machinery and car starters. Its DIN rail-compatible base enables plug-and-play installation in control panels.

✅ 24VDC coil
✅ DPDT with 2NO/2NC contacts
✅ 8-pin socket base; DIN rail compatible
✅ 10A at 240VAC rating for common loads
✅ LED indicator plus red mechanical indicator

💡 What is a 24V DC DPDT relay used for in industrial control systems? This handy device is used to switch and isolate multiple circuits in control panels and automotive starters. - Handles up to 10A at 240VAC - DPDT provides 2 normally open and 2 normally closed contacts for flexible wiring - DIN rail mountable with plug-and-play installation - LED + red mechanical indicator show coil status
