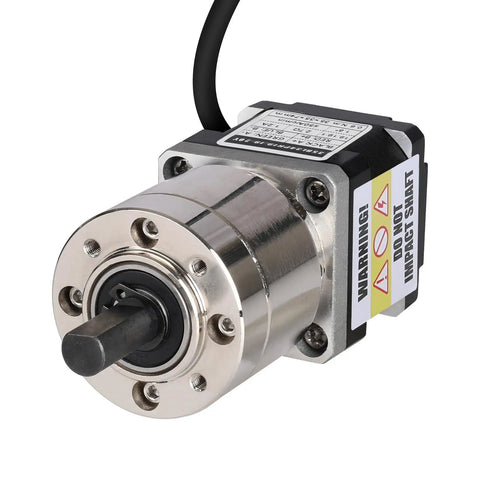

Beefy 19.19:1 Geared Nema 14 Stepper Motor With Integrated Planetary Gearbox, 2 Phase, 1.8 Degree Step, 0.26Nm High Torque, Bipolar, 2.7 Ohm, 1.2A, 73mm Body, 4-Lead, 20mm Shaft, 8mm Dia, 1m Cable, Perfect for 3D Printers and DIY CNC
✔️ 2-phase, 1.8° step, 0.26Nm torque, 1.2A, 73mm body
This compact NEMA 14 geared stepper blends a planetary gearbox with a strong frame, delivering plenty of torque in a small footprint. It's a solid fit for 3D printers, DIY CNC setups, and compact automation projects where precise microstepping and reliable hold are key. Pack: single unit.
✅ 35x35x73 mm body (35x35x73 mm) (1.38x1.38x2.88 in); shaft Ø8 mm (0.31 in); length 20 mm (0.79 in)
✅ Weight 411 g; 73 mm long; integrated 1 m cable
✅ Holding torque 0.26 Nm (36.82 oz-in); rated current 1.2 A; resistance 2.7 Ω; inductance ~2.9 mH
✅ Step angle 1.8° (200 steps/rev); gearbox ratio 19.19:1; 4-lead wiring
✅ Operating temp -20°C to +50°C; insulation class B; dielectric strength 500 V AC
💡 What is a geared NEMA 14 stepper motor with planetary gearbox used for in small automation projects?
Here's a handy breakdown:
- Compact, high-torque drive for 3D printers, DIY CNCs, and small robotics
- Planetary gearbox boosts torque while keeping overall size small
- Integrated 4-lead wiring makes mounting and routing easier
