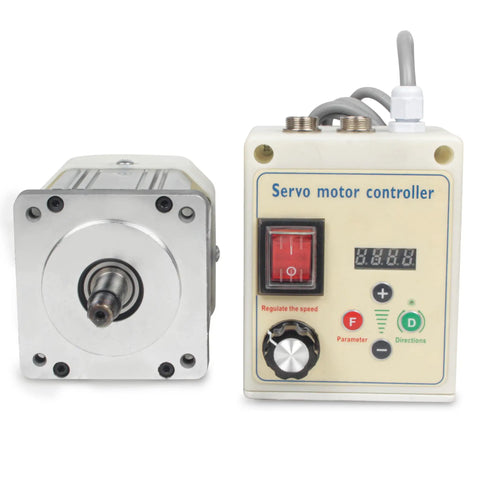

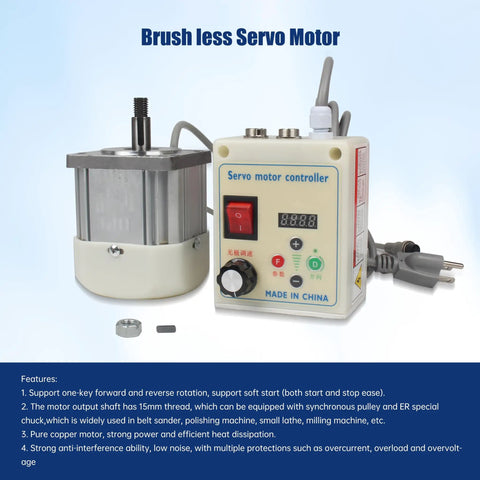

Beefy 1500W Brushless Servo Motor With 200 To 5000 RPM Range And 5.02 Nm Torque 110V Includes Speed Controller For Woodworking Machines Like Lathes Drills Taps Reducers And Belt Sanders

Heavy Duty 1500W Brushless Servo Motor with 200-5000 RPM
✔️ 1 pc unit, 110V DC brushless servo motor, 5.02 Nm torque, 200-5000 RPM

This heavy-duty, permanent-magnet brushless servo motor is built for power and precision in woodworking and automation. It’s a popular choice for lathes, drills, milling setups, belt sanders, and other machine tools where reliable speed control and torque matter.

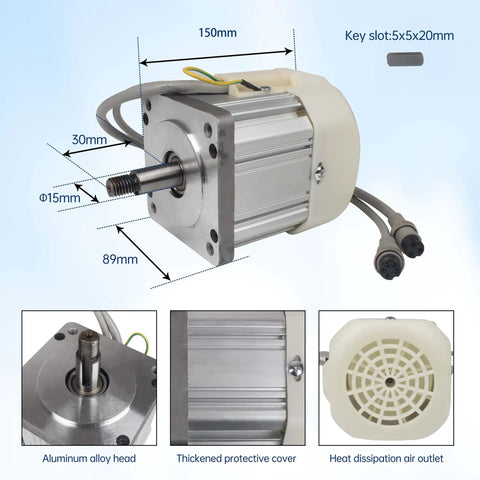

Dimension	Metric	Imperial
Mounting size	69 mm	2.72 in
Shaft diameter	15 mm	0.59 in
Shaft total length	42 mm (27 + 15)	1.65 in
Key slot	5 x 5 x 20 mm	5 x 5 x 20 mm
Through hole	M6	M6
Rated torque	5.02 Nm	44.5 in-lb

✅ Power: 1500W input power with permanent magnet brushless design
✅ Voltage & frequency: 110V DC, 50-60Hz
✅ Torque & speed: 5.02 Nm, 200-5000 RPM range
✅ Mounting & shaft: 69 mm fixed size, 15 mm shaft, M6 through hole
✅ Protections: overcurrent, overvoltage, short circuit, locked rotor

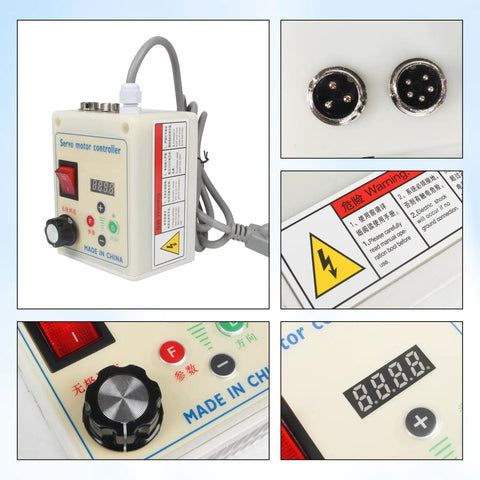

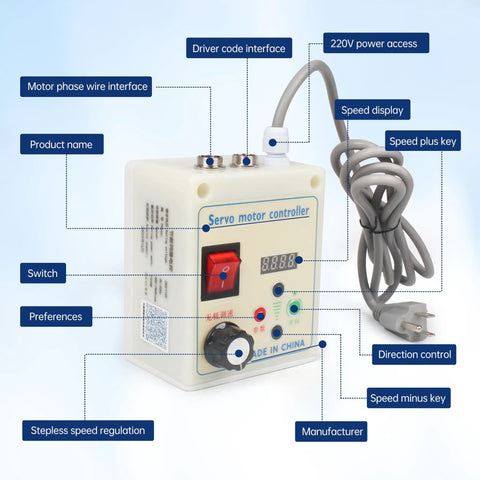

✅ Control options: knob speed control, soft start, remote capable✝️

💡 What is a brushless servo motor used for in woodworking equipment and automation setups? - It provides precise, repeatable speed control for lathes, drills, belt sanders, and mills. - Handy for DIY machines and automated tools where smooth start/stop and torque accuracy matter. - It integrates with standard controllers (PLC-485) and supports remote or pedal control for hands-free operation.
