Beefy 12V Heavy Duty Electric Stroke Linear Actuator With Mounting Bracket 900N Push Pull 4 Inch Stroke 100mm Stroke Length 10mm Per Second Low Noise Under 50dB IP54 Dust And Water Resistant Ideal For Auto Car RV Door Opener

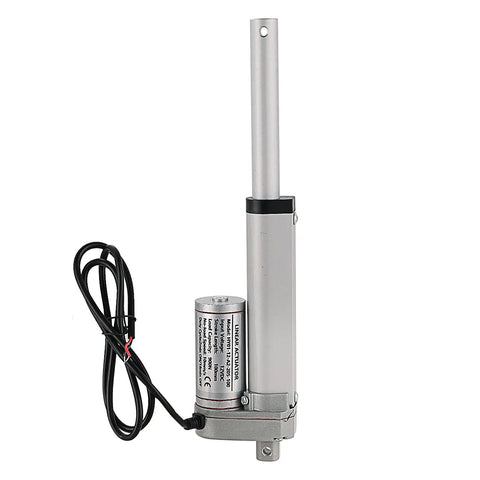

12V Heavy Duty Linear Actuator with Bracket, 900N
✔️ 900N push/pull, 100mm stroke, 12V DC, bracket included

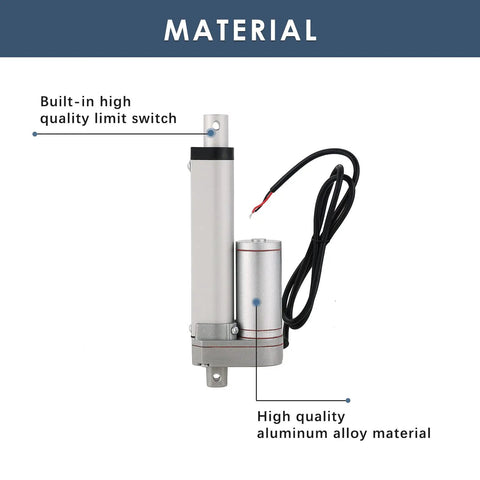

This rugged 12V electric stroke linear actuator ships with a mounting bracket for quick, secure installation. Made from aluminum alloy, it handles up to 900N and is built for auto doors, RV compartments, industrial equipment, and heavy-duty DIY projects.

✅ Stroke: 100 mm (4.0 in)
✅ Speed: 0.39 in/s (10 mm/s)
✅ Voltage: 12 V DC
✅ Power: 20-30 W
✅ Load: 900 N (225 lb)
✅ Retracted: 205 mm (8.1 in), Extended: 305 mm (12.0 in)
✅ IP54 rating
✅ Operating temp: -4°F to 167°F
✅ Includes mounting bracket & built-in limit switches

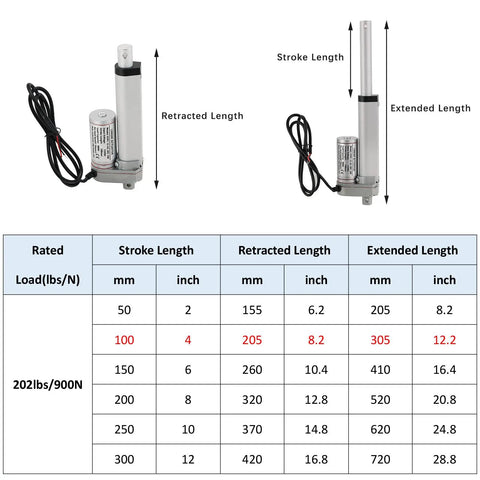

Stroke	100 mm (4.0 in)
Extended length	305 mm (12.0 in)
Retracted length	205 mm (8.1 in)
Speed	0.39 in/s (10 mm/s)
Voltage	12 V DC
Power	20-30 W
Load	900 N (225 lb)
IP rating	IP54
Operating temp	-4°F to 167°F
Includes	Mounting bracket

💡 What is a 12V linear actuator used for in DIY and industrial setups?

- handy for auto doors and RV compartments - supports controlled push/pull for lifts, chairs, and beds - built-in limit switches provide precise stop positions - IP54 rating helps in dusty or damp outdoor environments
