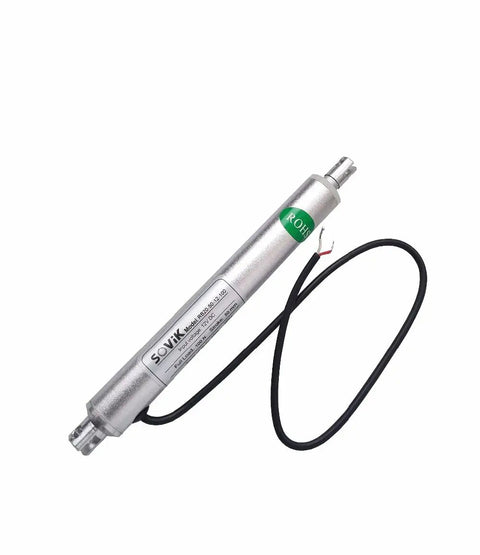

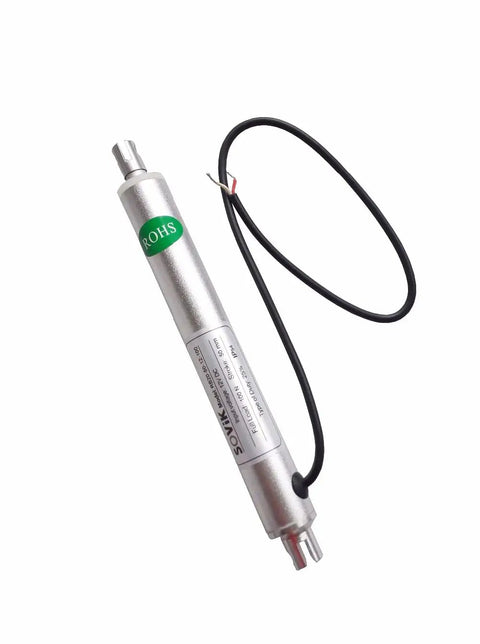

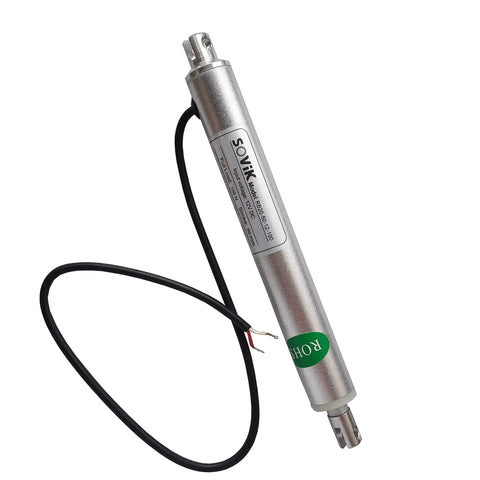

Beefy 12V DC Micro Mini Linear Actuator With 2 Inch Stroke And 50mm Travel, 200N Max Load, 20mm Round Tube, Inline Design, Quiet 5mm Per Second Speed, Small But Mighty DIY Project Workhorse

Compact 12V DC Micro Linear Actuator, 2in Stroke, 200N
✔️ 50mm travel, 175mm retracted, 225mm extended, 5mm/s, 20mm tube, 200N

This inline actuator is a compact, robust device designed to move loads with linear motion in tight places. It’s commonly used in DIY projects, robotics, furniture lifts, and small automation tasks where space is tight and quiet operation is needed.

Dimension	Metric	Imperial
Stroke length	50 mm	2.0 in
Retracted length	175 mm	6.89 in
Extended length	225 mm	8.86 in
Outer diameter	20 mm	0.8 in

✅ Stroke: 50 mm (2.0 in) travel
✅ Max load: 200 N (44 lbs)
✅ No-load speed: 5 mm/s
✅ Mounting holes: 5 mm diameter
✅ Weight: 0.14 kg (0.3 lb)
✅ IP54, duty cycle 25%

💡 What is a 12V DC micro mini linear actuator used for in DIY projects?

This handy device pushes and pulls loads in tight spaces, enabling compact automation.

- handy for tiny robotics, lids, and micro automation - fits tight spaces with a 50 mm stroke and 200 N load - quiet operation at 5 mm/s helps keep noise down ✝️
