Beefy 12V DC 80/60 Amp Waterproof Automotive Relay With Pigtail, 5 Pin SPDT High Current Relay For Cars And Boats, Weatherproof And Dustproof, Easy Install, Heavy Duty Switch For Power Circuits
Regular price
$88.88
Sale price$150.00you save $61.12
5-Pack 12V Waterproof 80/60A Relay Kit for Cars & Boats
✔️ 80A/60A load, 12V DC coil, SPDT, waterproof with pigtail < p>Heavy-duty 12V five-pin relay kit for automotive and marine power circuits. A reliable choice for cars, boats, and off-road setups where weatherproof performance matters. ✅ Nominal Coil Voltage: 12 V DC
✅ Coil Power: 1.8 W; Coil Resistance: 80 Ω
✅ Contact Rating: NO 80 A at 14 V DC; Max Switching Current: 80 A
✅ Max Switching Power: 560 W; Dielectric Strength: 500 VAC between open contacts
✅ Dielectric Between Coil & Contact: 750 VAC
✅ Life Expectancy: Electrical 100,000 operations; Mechanical 10,000,000
✅ Operating Temperature: -30 to +80 C; Humidity 40%-85%
✅ Insulation Resistance: 100 MΩ min at 500 VDC
✅ Package includes 5 x 12V DC 80/60A waterproof relay kits

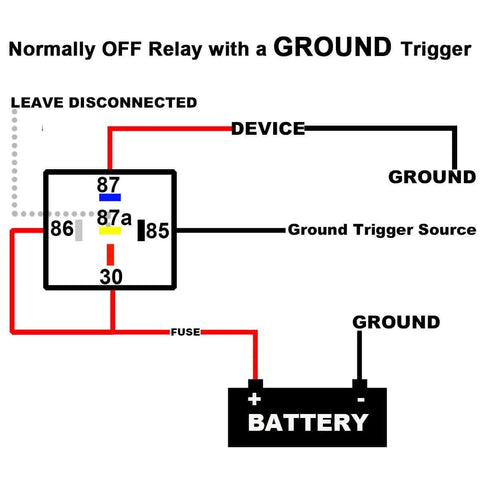

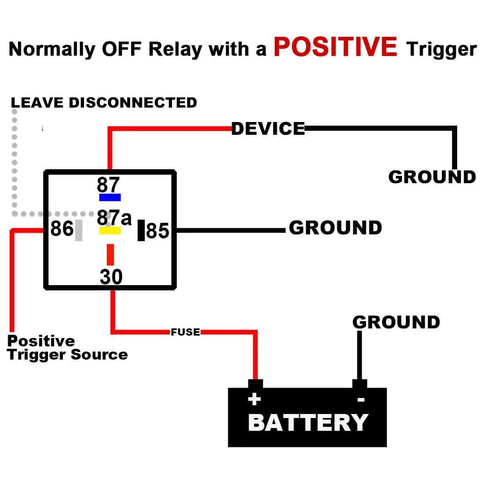

✅ 5-pin SPDT configuration with weatherproof housing and pigtail leads
✔️ 80A/60A load, 12V DC coil, SPDT, waterproof with pigtail < p>Heavy-duty 12V five-pin relay kit for automotive and marine power circuits. A reliable choice for cars, boats, and off-road setups where weatherproof performance matters. ✅ Nominal Coil Voltage: 12 V DC
✅ Coil Power: 1.8 W; Coil Resistance: 80 Ω
✅ Contact Rating: NO 80 A at 14 V DC; Max Switching Current: 80 A
✅ Max Switching Power: 560 W; Dielectric Strength: 500 VAC between open contacts
✅ Dielectric Between Coil & Contact: 750 VAC
✅ Life Expectancy: Electrical 100,000 operations; Mechanical 10,000,000
✅ Operating Temperature: -30 to +80 C; Humidity 40%-85%
✅ Insulation Resistance: 100 MΩ min at 500 VDC
✅ Package includes 5 x 12V DC 80/60A waterproof relay kits
✅ 5-pin SPDT configuration with weatherproof housing and pigtail leads
💡 What is a common use for a 12V automotive relay in power circuits?
Relays let you switch high-current devices safely from a low-current control signal.
- Handy for turning on lights, pumps, fans, or winches in vehicles and boats
- Weatherproof design protects against rain, splash, and dust
- 5-pin SPDT configuration eases wiring and expands control options
