Beefed Up DIY CNC Linear Rail And Ballscrew Kit SFU1605 With Square Rails And NEMA17 Stepper 200mm Travel For X Y Z Linear Stage High Precision Three Hundredths Millimeter Repeatability 30kg Load Great For DIY Router And Machining Projects
✔️ 200mm travel, SFU1605 screw, square rail, NEMA17 motor, 30kg load

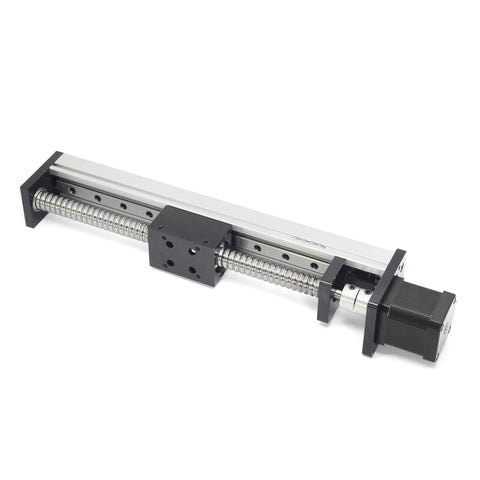

This precision linear stage kit combines a square rail guide with a SFU1605 ballscrew and NEMA17 motor, designed for compact CNC setups. It's a solid choice for DIY routers, milling rigs, and automated positioning on desktop machines.
✅ Repeat positioning accuracy ±0.03 mm
✅ Max horizontal load 30 kg; vertical 15 kg
✅ Speed 0-100 mm/min
✅ Effective travel 200 mm; total length 365 mm
✅ SFU1605 ballscrew; 16 mm dia; lead 5 mm
✅ NEMA17 motor: torque 1.2 N·m; current 1.5 A; 1.8° step

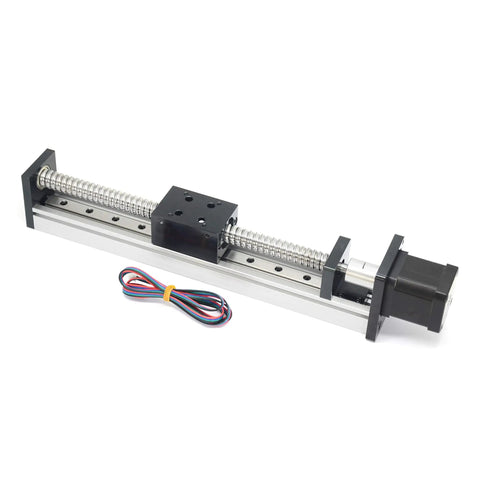

✅ Package includes: 1 linear stage actuator with motor; 1 motor cable
💡 What is a CNC linear rail and ballscrew kit used for in DIY machine builds? This handy motion control kit offers precise linear motion for compact X, Y, Z axes. - High precision tracking across movements - Smooth operation with SFU1605 5 mm lead screw - Easy integration with NEMA17 motors - Ideal for DIY routers, small mills, and laser engravers
