Beefed Up Brushless Servo Motor Controller Driver Board V4.2 With Software Configuration Compatible With Odrivetool FOC BLDC 56V 8V To 56V Range 70A Continuous Current 120A Peak For Smooth Fast High Performance Motion Control
✔️ 70A cont., 120A peak, 8-56V input, USB/CAN, 3 drive modes

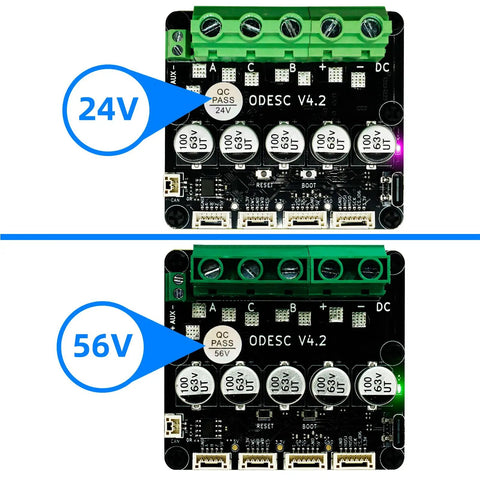

ODESC V4.2 single driver board is a high-current brushless DC motor controller designed for precise motion on CNC machines, 3D printers, robotic arms, and automated slides. It supports speed, position, current, and torque modes, multiple encoder types, and regenerative braking. This board is built to handle up to 56V and 70A continuous rating with robust cooling.
✅ 63 mm × 58 mm × 30 mm (2.5 in × 2.3 in × 1.2 in) dimensions with CN aluminum heat sink
✅ Continuous current 70A, peak 120A per motor
✅ Input voltage 8-56V DC
✅ Microprocessor STM32F405RGT6, newest hardware version
✅ Encoders supported AB, ABI incremental; SPI absolute; HALL; AMT102/103; AS5047P

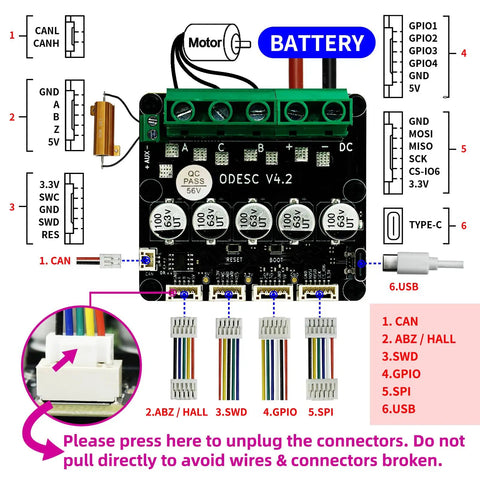

✅ Interfaces USB open source protocol, UART, PWM, Step/Dir, GPIO, CAN, ASCII
✅ Motion modes position, speed, torque for trajectory planning
✅ Braking options braking resistor and regenerative braking
💡 What is a sealed brushless servo motor driver used for in CNC and robotics?

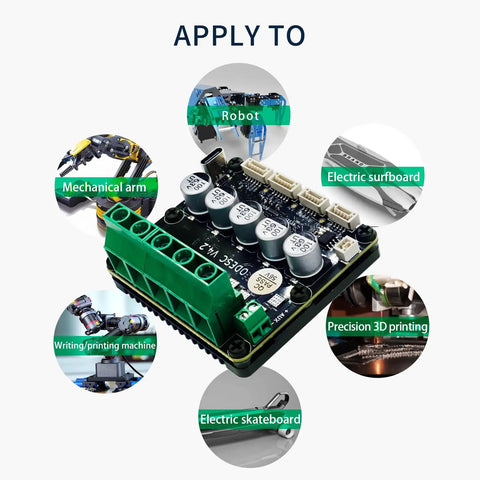

This handy controller handles precise motion across multiple modes and supports wide voltage and current ranges for different setups. - For CNC mills and robotic arms to control speed, position, and torque - Supports AB, SPI, Hall encoders and AS5047P for accurate feedback - Interfaces include USB, CAN, UART, PWM for easy integration - Programmable with trajectory planning and safety features
