Beefed-Up 220V 4kW VFD Inverter For Spindle CNC Speed Control, 0 To 3000 Hz Output, Converts Single Or Three Phase Input Into Three Phase Output, 5HP 16A, Heavy-Duty Variable Frequency Drive For CNC Machines And Spindles

Heavy-Duty 4kW 220V VFD Inverter for CNC Spindles
✔️ Output 0-3000 Hz, supports single or three-phase input, 16A

This VFD inverter converts single- or three-phase AC 220V input into a smooth three-phase output for CNC spindles. It is typically used with CNC routers, milling machines, drilling machines, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines.

✅ Power: 4kw
✅ Input voltage: AC 220V (±15%)
✅ Output voltage: AC 220V
✅ Maximum output current: 16A
✅ Input frequency: 50/60 Hz
✅ Output frequency: 0-3000 Hz
✅ Input phase: Single or Three phase
✅ Output phase: Three-phase

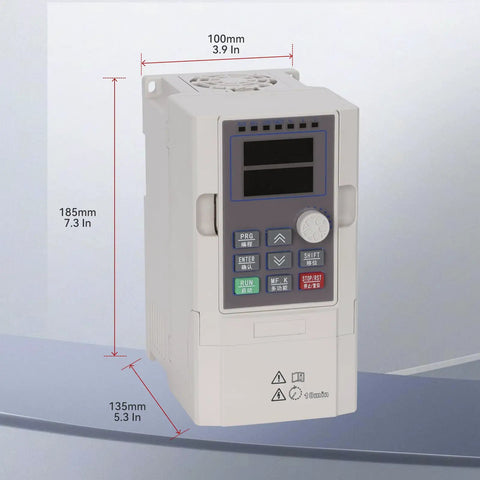

✅ VFD Dimension: 5.3 x 3.9 x 7.3 inch (L x W x H)
✅ RS485 communication port with MODBUS control
✅ Strong anti-jamming capability for safe use
✅ Detachable design for remote control compatibility
✅ Importent Note: This VFD surpport external resistor. If your motor is heavy load, pls choose a higher power level VFD or contact sales for model selection suggestion.
✅ Environment note: The working environment is relatively humid, with water mist, water droplets or metal objects falling in, which may cause short circuits

💡 What is a VFD inverter used for in CNC machines and how does it control spindle speed and torque?

A handy explanation:

- It converts incoming power into an adjustable frequency and voltage to drive the motor
- It allows a wide spindle speed range (0-3000 Hz) to match cutting conditions
- It supports RS485 MODBUS for CNC controller integration

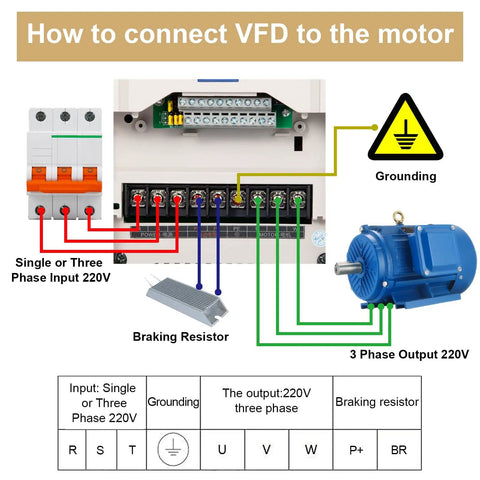

- It accepts single- or three-phase input and outputs three-phase power to the spindle
