Beefed Up 1.5 Inch Bore 12 Inch Stroke Welded Double Acting Hydraulic Cylinder With 2 Ton Capacity, Maximum 4410 Lbs Thrust, 3/8 Inch JIC 37 Degree End Connectors, 9/16-18 Thread, 2320 PSI

Heavy-Duty 1.5in Bore Welded Cylinder, 12in Stroke
✔️ Single unit: 2 Ton capacity, 4410 lb thrust, 9/16-18 thread JIC 37° ends

This welded double-acting hydraulic cylinder is designed for rugged outdoor use, delivering reliable linear force in hydraulic systems for construction, agricultural, and material-handling equipment.

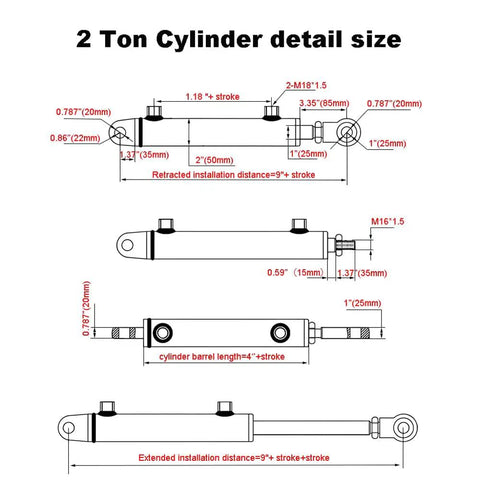

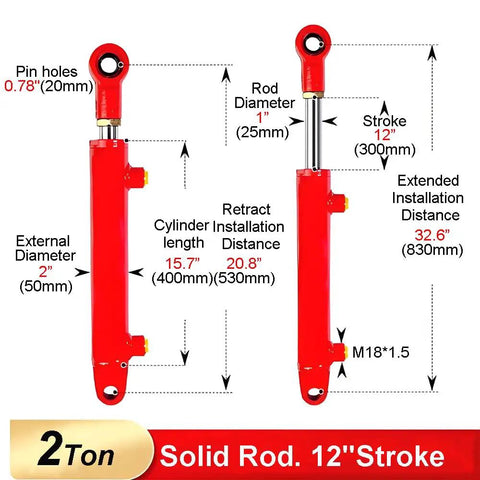

✅ Bore: 1.5 in (40 mm)
✅ OD: 2 in (50 mm)
✅ Stroke: 12 in (300 mm)
✅ Rod diameter: 1 in (25 mm)
✅ Retracted length: 20.8 in (530 mm)
✅ Extended length: 32.6 in (830 mm)

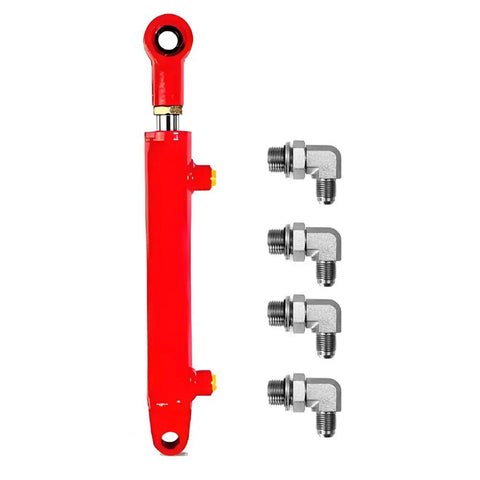

✅ Fittings: 3/8 in JIC 37° with 9/16-18 thread
✅ Rated pressure: 2320 psi

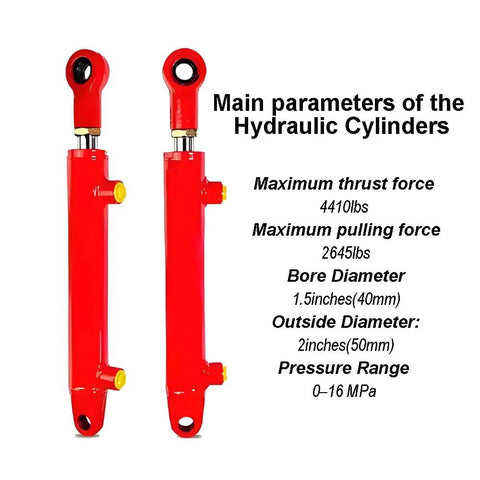

✅ Max thrust: 4410 lb
✅ Max pulling force: 2645 lb

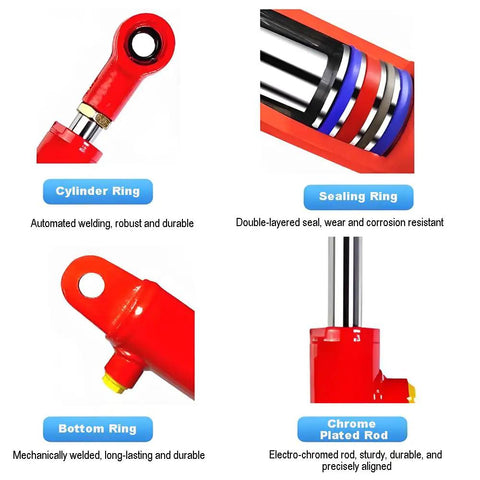

✅ Construction: fully welded steel body; chrome-plated rod
✅ Color: Red

💡 What is a hydraulic cylinder used for in industrial equipment?

Hydraulic cylinders are handy because they convert hydraulic pressure into linear motion, powering a wide range of machinery.

• Power linear actuation for pushing and pulling heavy loads
• Provide controlled force for lifting, clamping, and positioning
• Double-acting designs deliver force in both extend and retract strokes
• Common in construction, farming, and material handling systems
