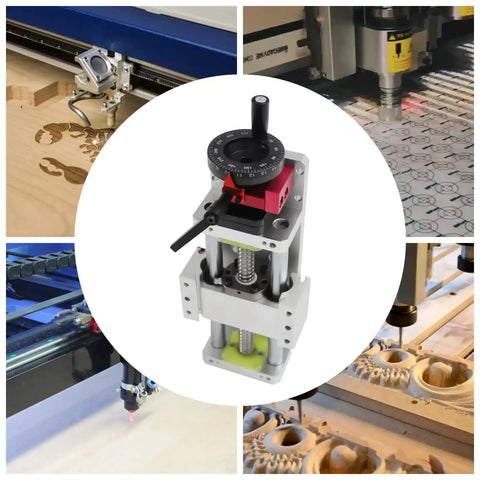

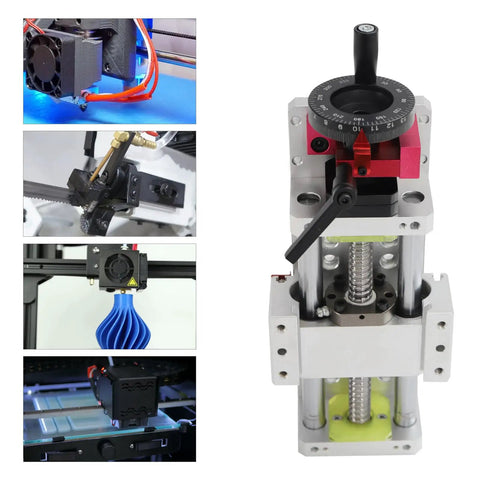

Beefed Up 100mm Linear Stage Actuator With 1605 Ballscrew And Dual Optical Axis Rail Guide Manual Slide Stage With Ruler For CNC Router Controller High Precision Repeatable To 0.05mm Supports 30 Kg Horizontal Load
✔️ 0.05mm repeatability, 30kg horizontal load, 1605 screw, single unit
This linear stage travel unit is a precision positioning module used in CNC routers, laser engravers, 3D printers, and automation gear. It guides motion along a straight axis for repeatable placements and controlled automation.
✅ Travel range: 100 mm (3.94 in)
✅ Ball screw: 16 mm dia, 5 mm lead (0.63 in x 0.197 in)
✅ Horizontal load: 30 kg (66.14 lb); vertical load: 20 kg (44.09 lb)
✅ Repeatability: ±0.05 mm (0.002 in)
✅ Rail: HG15 double optical axis guide, 6061 aluminum, sand-blasted finish
💡 What is a 100mm linear stage with 1605 ballscrew used for in precision motion control? This handy piece is built for precise, repeatable motion in automation setups. - Designed for CNC routers, engraving machines, 3D printers, and dispensing equipment - Provides straight-line motion with dual optical axis guides for stability - Uses a 1605 ballscrew for predictable, fine-positioning increments - Delivers repeatability to ±0.05 mm for tight tolerances
✝️
