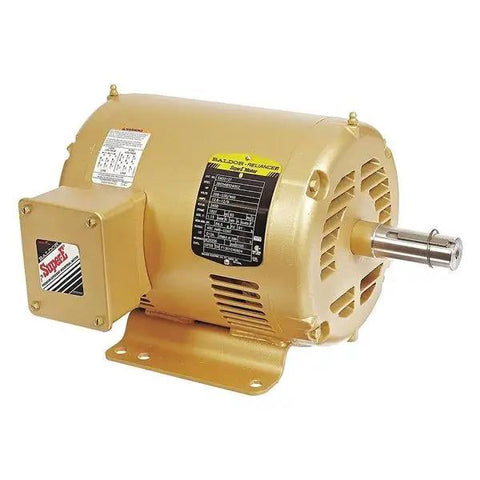

Beast Mode Three Phase General Purpose Motor, 5 HP, 182T Frame, 208-230/460V AC, 3,450 RPM, 60 Hz, Open Drip Proof, Rigid Base Mount, Class F Insulation, Service Factor 1.15, Full Load Amps 12/6

Three-Phase 5 HP General Purpose Motor, 182T Frame (Pack 1) ✔️ 208-230/460V AC, 3450 RPM, ODP, rigid base mount, 1.15 SF

General purpose three-phase motor designed for industrial use across pumps, fans, conveyors, and other machinery. Built for easy installation with rigid base mounting and a standard 182T frame.

✅ Horsepower: 5 HP
✅ Frame: 182T
✅ Voltage: 208-230/460V AC
✅ Speed: 3450 RPM at 60 Hz
✅ Enclosure: Open Drip Proof (ODP)
✅ Mount: Rigid Base
✅ Insulation Class: F
✅ Service Factor: 1.15
✅ Full Load Amps: 12.0/6.0 A
✅ Bearings: Ball bearings
✅ Duty: Continuous
✅ Certifications: CSA, CSA EEV, UR
