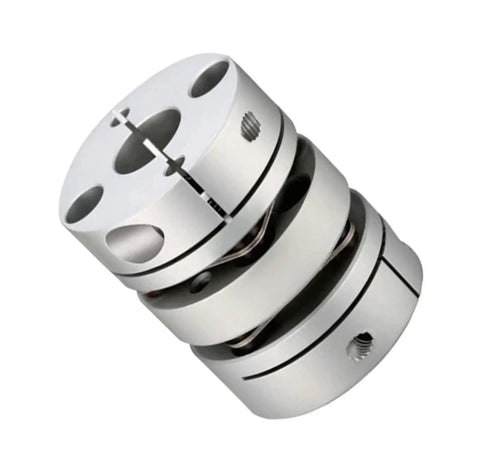

Beast Mode Aluminum Double Disc Flexible Coupler Shaft With Stainless Steel Diaphragm Heavy Duty Torque Transfer For Cnc Machines And Robotic Arms Slick Design Upgrade

Heavy Duty Aluminum Flexible Coupler For CNC Torque Transfer
✔️ Stainless Steel Diaphragm, Double Disc Design, Compact Build

This double disc flexible coupler shaft connects drive motors to driven loads while handling minor angular and parallel misalignments without play. The lightweight aluminum housing pairs with a durable stainless steel diaphragm to ensure high sensitivity and smooth torque transfer across speed ranges. Built for demanding spots, this unit offers extended service life and compact form factor suitable for CNC routers, robotic arms, servo systems, and general industrial machinery needing dependable power transmission.

✅ All-aluminum housing delivers lightweight strength and natural corrosion resistance
✅ Stainless steel diaphragm enables torsional stiffness and zero backlash operation
✅ Double disc geometry absorbs angular, parallel, and axial misalignment effectively
✅ High sensitivity provides accurate position data and responsive torque control
✅ Compact footprint saves mounting space inside CNC machines and robotic assemblies
✅ Heavy duty torque transfer capability suits continuous use across wide range of automation tasks

💡 What causes backlash in rigid shaft couplings and how does a double disc design prevent it?
Flexible couplers eliminate mechanical play by using compliant stainless steel diaphragms that bend smoothly to transmit rotation while blocking linear gap buildup.
- Double disc geometry handles angular and parallel shaft offsets while maintaining zero backlash for tight encoder feedback loops
- Heavy duty torque ratings match servo demands in CNC mills and robot joints without risking diaphragm shear failures during sudden stops
- Responsive torsional stiffness prevents wind-up errors in high acceleration cycles found in pick-and-place automation systems
- Lightweight aluminum plates reduce moving inertia for faster cycle times and less strain on drive bearings over long shifts
