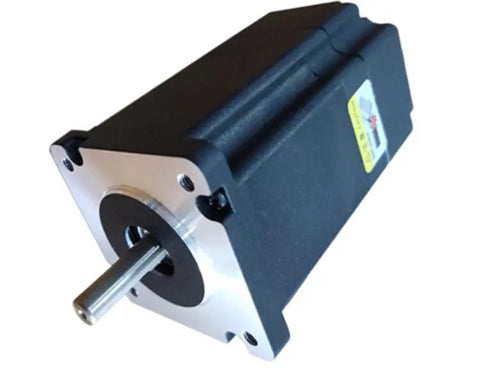

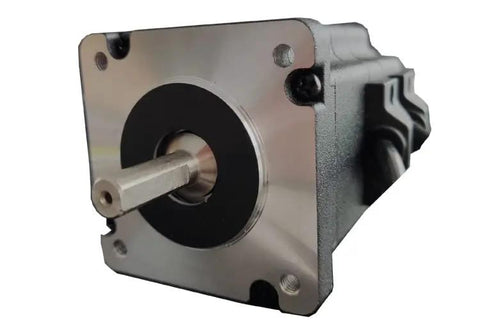

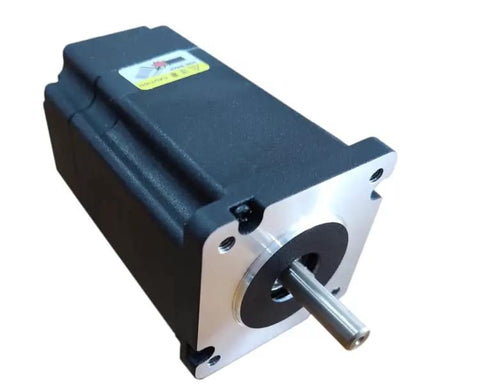

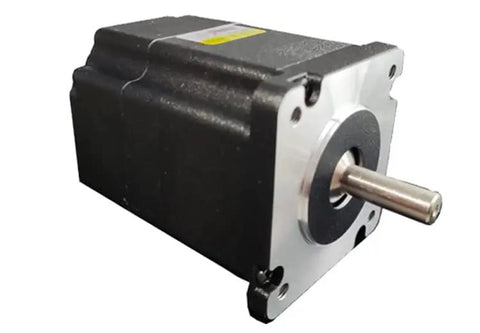

Beast Mode 400W 48V BLDC Motor For NEMA 24 Frame 3000 RPM High Speed With 8mm Shaft Diameter Low Noise Brushless DC Motor For Robotics CNC And Electric DIY Projects

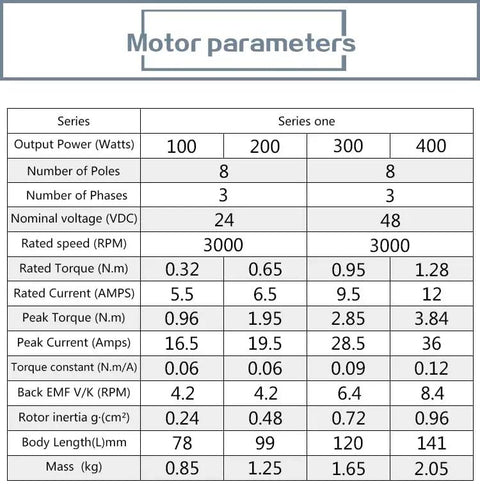

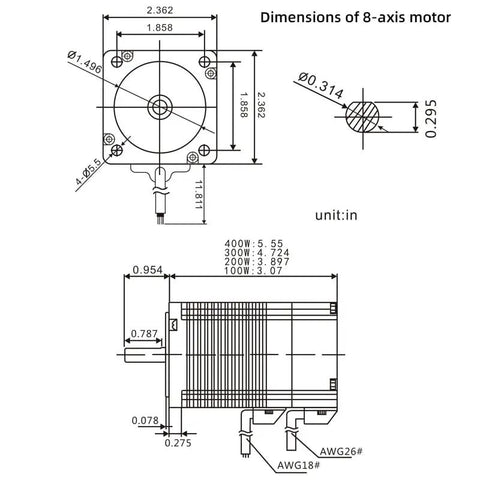

✔️ 400W, 48V BLDC, 3000 RPM, 8mm shaft, 60mm flange (2.36in)
This compact brushless DC motor brings reliable power to robotics, CNC, and DIY automation. With a NEMA 24 footprint, it's a solid upgrade for compact motion systems and hobby projects.
✅ Rated Power: 400W
✅ Input Voltage: 48V
✅ Rated Speed: 3000 RPM
✅ Flange Diameter: 60mm (2.36 in)
✅ Shaft Diameter: 8mm (0.315 in)
✅ Poles: 8
✅ Holding Torque: 1.28 N m
✅ Operating Temp: -20°C to 50°C
✅ Dielectric Strength: 700V AC 1 min
💡 What is a handy question about using a high-speed NEMA 24 BLDC motor in hobby automation? This handy motor helps with precise control in compact setups.
- suitable for sealed ball bearing systems in small CNCs
- works well with ceramic bearings for reduced wear
- fits linear slide units and robotic arms
- easy PWM and driver compatibility for quick prototyping
