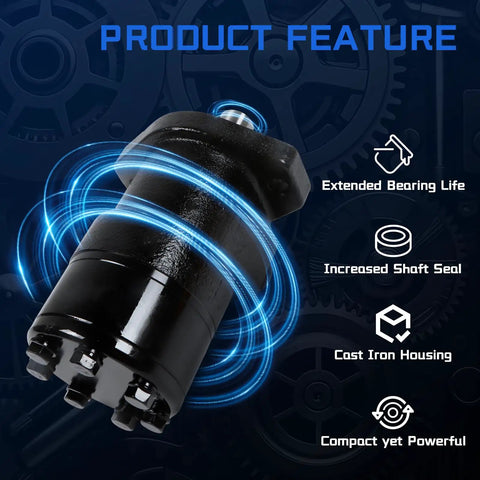

Beast Hydraulic Motor 103-1037 Replacement for Eaton Char-Lynn S Series With 11.4 Cu In Per Rev Displacement and 304 RPM High Torque Low Speed Orbital Powerhouse for Construction, Agriculture, and Mining cast iron housing with extended bearing life
Beast Hydraulic Motor 103-1037 Replacement for Eaton Char-Lynn S Series With 11.4 Cu In Per Rev Displacement and 304 RPM High Torque Low Speed Orbital Powerhouse for Construction, Agriculture, and Mining for mower, baler, conveyor, excavator, winch

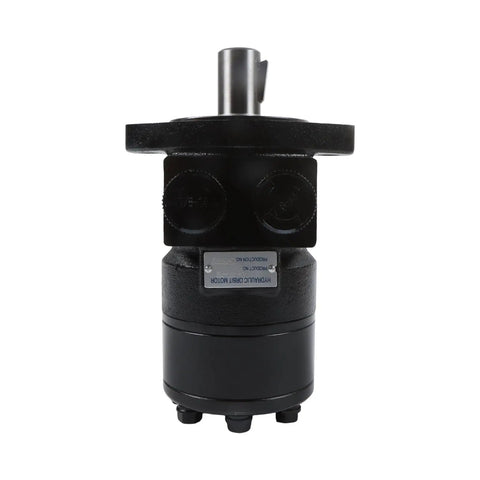

Beast Hydraulic Motor 103-1037 Replacement for Eaton Char-Lynn S Series With 11.4 Cu In Per Rev Displacement and 304 RPM High Torque Low Speed Orbital Powerhouse for Construction, Agriculture, and Mining black hydraulic motor with mounting flange

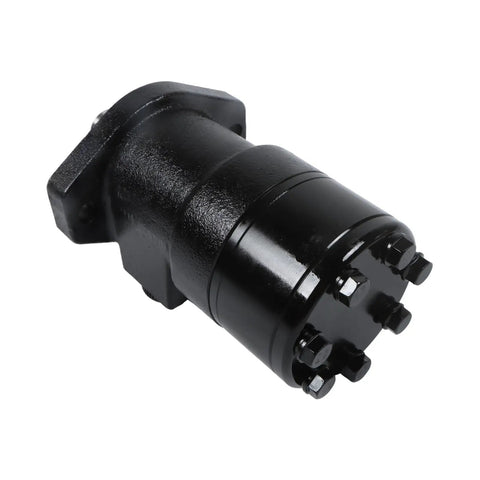

Beast Hydraulic Motor 103-1037 Replacement for Eaton Char-Lynn S Series With 11.4 Cu In Per Rev Displacement and 304 RPM High Torque Low Speed Orbital Powerhouse for Construction, Agriculture, and Mining black hydraulic motor

Beast Hydraulic Motor 103-1037 Replacement for Eaton Char-Lynn S Series With 11.4 Cu In Per Rev Displacement and 304 RPM High Torque Low Speed Orbital Powerhouse for Construction, Agriculture, and Mining

$301.95 $633.00you save $331.05
SKU: VXB0GHY91LKY
UPC:

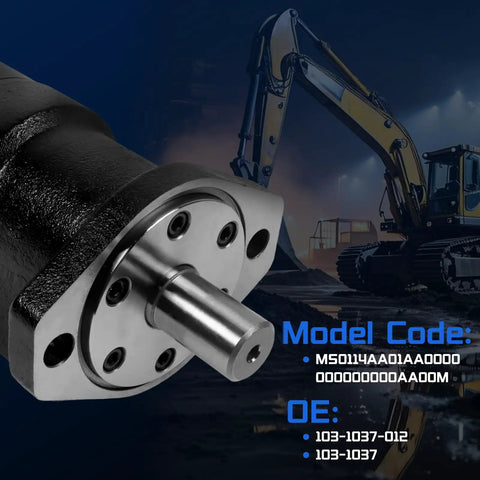

103-1037-012 Replacement Hydraulic Motor for Eaton S Series
✔️ Single unit, ready-to-install - box includes one motor

This direct-swap hydraulic motor replaces Eaton Char-Lynn S Series units, delivering 11.4 cu in/rev displacement and 2948 lb-in torque at 304 RPM. It bolts onto agricultural augers, harvesters, and railroad maintenance gear without modifications.

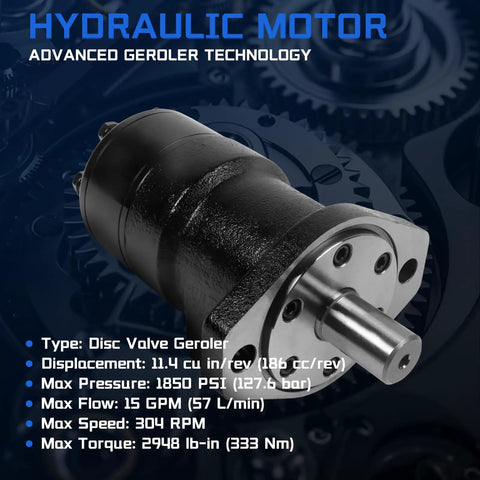

✅ 11.4 cu in (186 cc) displacement per rev
✅ 2948 lb-in torque at 304 RPM; max pressure 1850 PSI; max flow 15 GPM

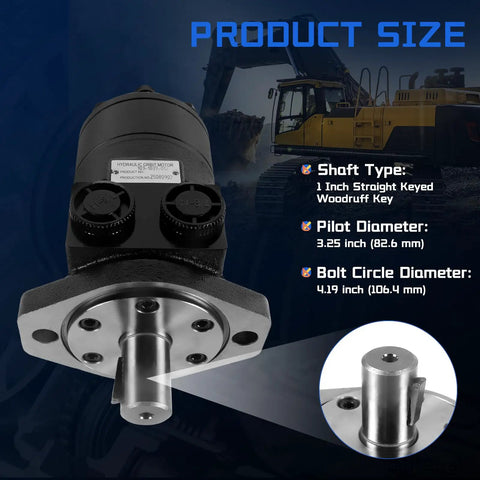

✅ 2-bolt SAE-A flange mount with 3.248 in pilot diameter (82.6 mm) and 4.187 in bolt circle (106.3 mm)
✅ 7/8-14 SAE O-ring side ports; no case drain required

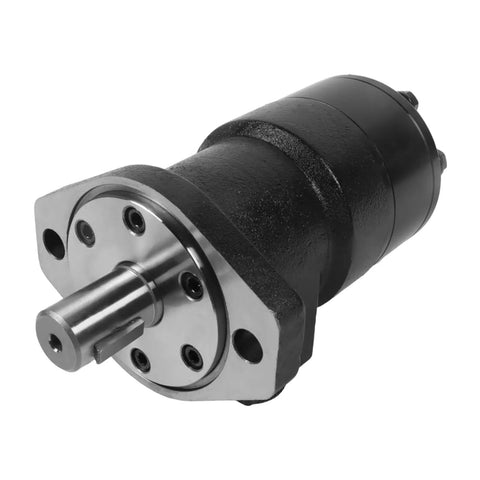

✅ 1 inch straight shaft with 1/4 in keyway and 1/4-20 UNC-2B threaded end hole
✅ Cast iron housing; operating temp -30°F to 180°F

💡 What is a hydraulic motor replacement used for in heavy equipment?

This handy replacement motor is built to bolt into Eaton Char-Lynn S Series systems and deliver reliable, low-speed torque for demanding jobs.

- 11.4 cu in (186 cc) displacement per rev
- 2948 lb-in torque at 304 RPM; 1850 PSI max; 15 GPM max
- 2-bolt SAE-A flange mount; pilot diameter 82.6 mm; bolt circle 106.3 mm
- 1 inch straight shaft with 1/4 in keyway and 1/4-20 UNC-2B threaded hole
✝️
