VXB
Bearing UCPH205-16 1" Pillow Block Mounted Bearings
Title
$28.99
SKU: UCPH205-16
UPC: 00193019333358
UPC: 00193019333358
Item: UCPH205-16 Bearing
Type: high centerheight pillow unit
Bolt Size: 3/8
Basic Load (Cr): 14 KN
Basic Load (Cor): 7.85 KN
Type: high centerheight pillow unit
Bolt Size: 3/8
Basic Load (Cr): 14 KN
Basic Load (Cor): 7.85 KN
UCPH205-16 Bearing Pillow Block Bearing Cylindrical bore (with set screws) 1" Inner Diameter Bearing |
This unit is the high centerheight pillow type unit, It has a great resistance to impact loads. It is a suitable for machinery where greater base to center heights are required.Applications are Printing machinery and spinneret.
|

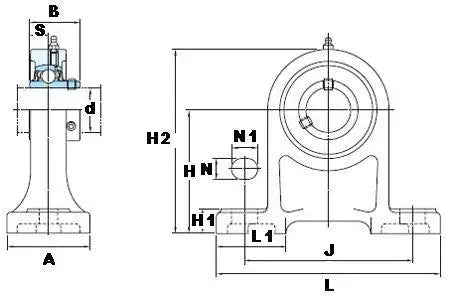

Dimensions (Inches) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
d | H | L | A | J | N | N1 | H1 | H2 | L1 | B | S |
1" | 3-5/32" | 5-1/2" | 1-31/32" | 4-1/8" | 1/2" | 3/4" | 5/8" | 3-1/2" | 1-15/16" | 1.343" | 0.563" |
