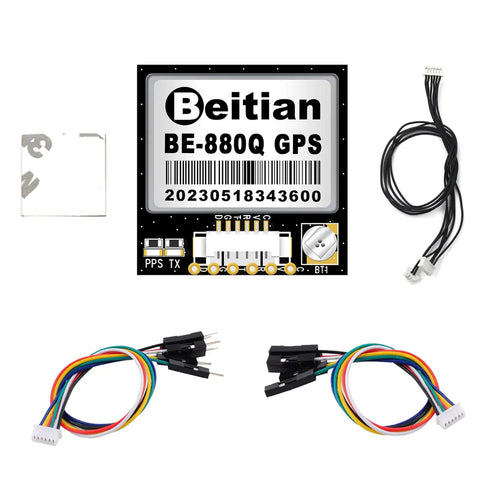

BE-880Q GPS Module With Flash Memory And QMC5883L Compass, Reliable GPS Antenna, TTL Level Serial At 38400bps, Plug And Play For Arduino Raspberry Pi Pixhawk APM Flight Controllers, Ideal For DIY Drones And UAV Projects
✔️ TTL level serial 3.3-5V, 38400bps default, single unit + 3 cables GPS+QMC compass
This GPS module combines a fast GPS engine with a built-in QMC5883L compass and on-board flash to save configuration for quick plug-and-play setup on Arduino, Raspberry Pi, Pixhawk, APM flight controllers, and DIY drone projects. It outputs TTL level serial by default with an optional RS-232 mode via a converter, and supports multi-constellation reception for better coverage.

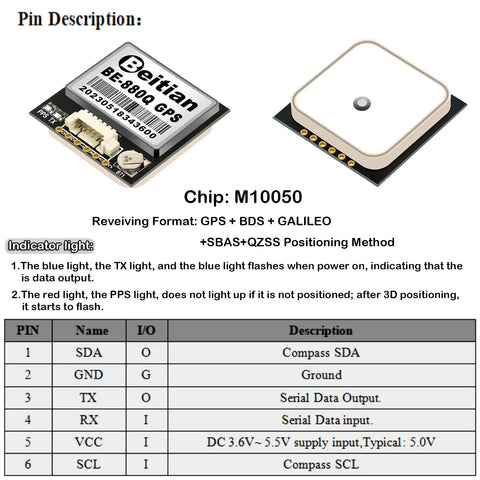

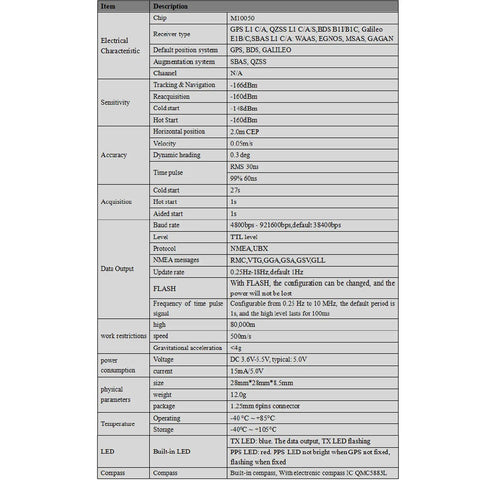

✅ Chip: M10050 with integrated QMC5883L compass
✅ Constellations: GPS L1 C/A, QZSS L1 C/A/S, Galileo E1B/C, SBAS WAAS/EGNOS
✅ Output: TTL level serial, 3.3-5V, default 38400bps
✅ Baud range: 4800-921600bps
✅ On-board flash memory stores configuration

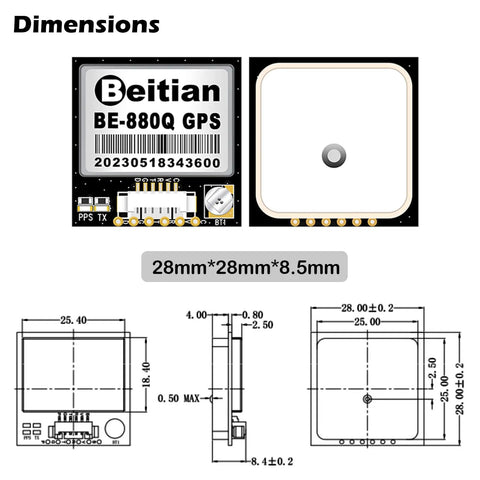

✅ Size: 28 x 28 x 8.4 mm, 1.25 mm 6-pin connector
✅ Output protocols: NMEA and UBX; sentences RMC, VTG, GGA, GSA, GSV, GLL
✅ Time data: 1PPS with RMS 30ns
💡 What is a drone GPS module with flash memory and QMC5883L used for in flight controllers?
It’s handy for reliable positioning, heading data, and easy configuration storage across common flight controllers.
- Positioning data from GPS satellites and heading from the QMC5883L compass

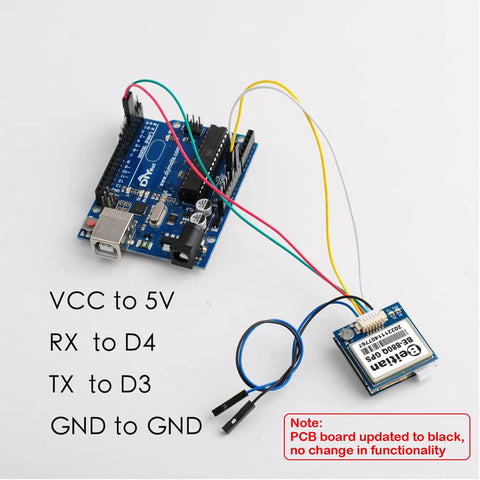

- Plug-and-play compatibility with Arduino, Raspberry Pi, Pixhawk, APM
- On-board flash memory saves settings for quick reuse in projects
- Supports NMEA and UBX outputs to fit different flight stacks
