Badass Weld-On Trailer Hinges Beefy Strap Style Long Leaf Door Hinge Carbon Steel 5-1/8 by 3-1/4 Inch for Toughest Jobs Rock Solid Construction Pack of Two

heavy duty pack two trailer hinges strap style design
✔️ Low carbon steel q235b size 5 1/8in x 3 1/4in pin 3/8in

This pack of two welded door hinges uses beefy strap style leaf design built out for hard working farm trailers, utility carts, and equipment boxes. You simply set them on the frame edge and tack weld to lock them in place without hassle. They hold up against rough terrain and daily bumps while keeping your lids swinging smooth.

✅ Build out of low carbon steel q235b plate material

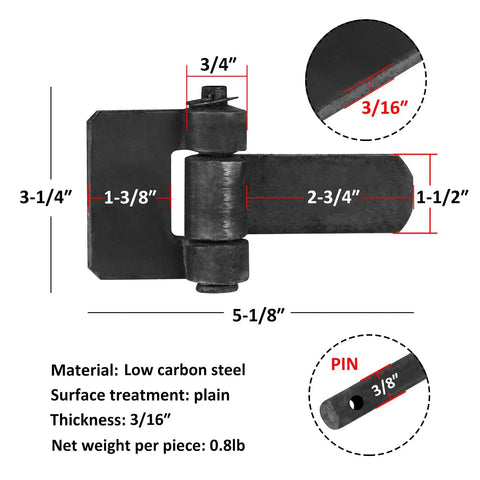

✅ Measures 5 1/8in x 3 1/4in x 3/4in overall size (130 x 82 x 19mm)
✅ Plate thickness hits 4.5mm for solid weld base
✅ Barrel pin diameter comes in at 3/8in (10mm)

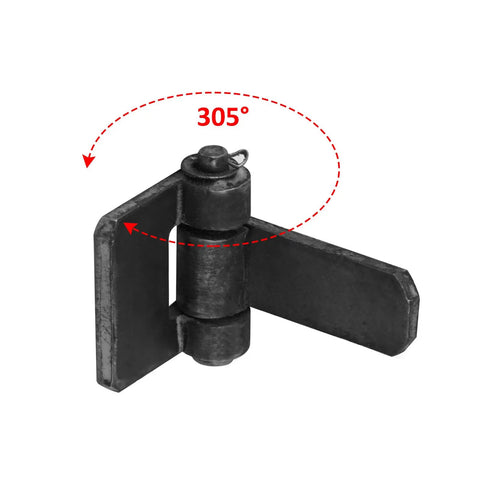

✅ Max turn reaches 305 degrees on the main axis

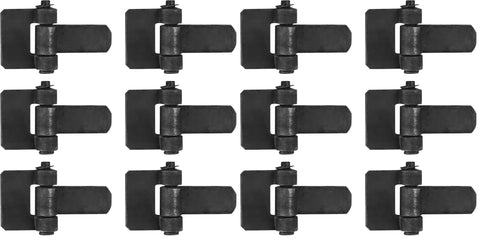

✅ Sold as a pack of two units for direct installation

💡 How do you prep welded leaf hinges for heavy duty trailer box applications?
You knock out a handy weld job by following these straightforward steps.
- Cut hinge plates flat against your frame edge using a plasma torch or chop saw
- Apply high heat welding rods along the contact zone to fuse the metal completely
- Dress the weld seams smooth with a flap disc so paint rolls on even later
- Test the swing path three times full arc before letting the joints cool down
