Badass Top Shelf X Y Z Axis Linear Stage Slide Featuring Precision SFU1605 Ball Screw Drive And NEMA 23 Servo Motor Options For Rock Solid Machine Builds With Fifty Kilogram Load Capacity
✔️ DXG-YR60 stage delivers ±0.03mm accuracy and 50 kg load limit
This single precision linear stage offers smooth axis movement for automated equipment, CNC routers, and optical alignment setups. Built around a sealed ball screw mechanism, it guarantees steady motion control under heavy weights while holding tight tolerance across long travel runs. The slim rail layout slots neatly into cramped benches without giving up rigid stability for those handy everyday builds.
✅ Guide diameter measures 15mm for stiff rail support✅ Effective stroke ranges from 50mm up to 1200mm

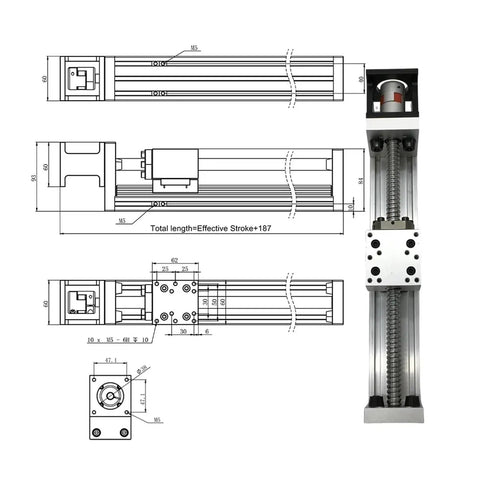

✅ Module footprint sits at 60 by 62mm for compact mounting
✅ Repeat positioning accuracy stays within ±0.03mm
✅ Horizontal capacity holds 50kg while vertical handles 30kg

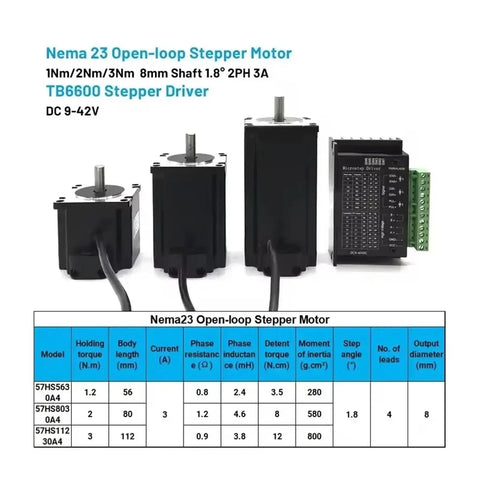

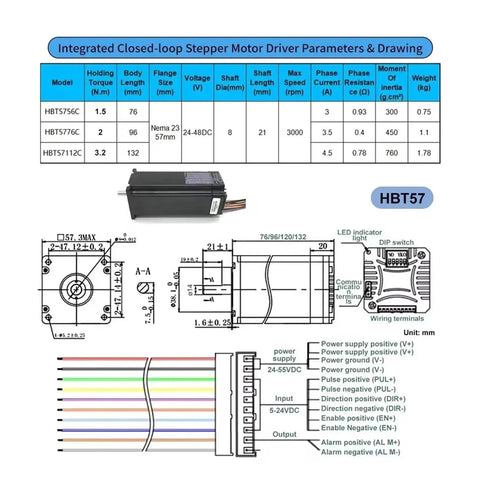

✅ Compatible with NEMA 23 servo motors out of the box
💡 What criteria matter most when choosing a ball screw drive for precise motion control projects? - Target lead pitches around 5mm or 10mm to lock in repeatable stops during long run times - Size the screw core height to match your planned weight limits so you dodge extra flex under full load - Route a matching rail pair alongside the track to block side wander when sliding heavy carts around - Verify preloaded bearing stiffness ahead of time since locked-in torque keeps cutters tracking straight paths
✝️
