Automatic Infrared And Hot Air Reflow Oven For PCBs 0-280C Adjustable Temperature SMD SMT BGA Rework Station Intelligent Infrared IC Heater 110V 60Hz Large 12 By 13 Inch Heating Zone Easy Access Pull Out Design For DIY Projects
✔️ 1500W infrared heater, 0-280°C, 8 preset temperature profiles, single unit

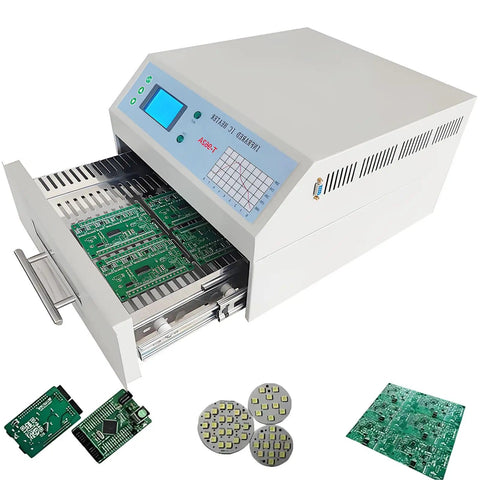

This automatic reflow soldering oven handles the full soldering cycle, preheat, reflow, and cooling, for surface-mount devices. Its large 300x320 mm (12x13 in) infrared heating zone is great for big boards, while the pull-out design makes post-process access a breeze. Use it in DIY projects, small-batch production, or R&D labs to achieve reliable solder joints.

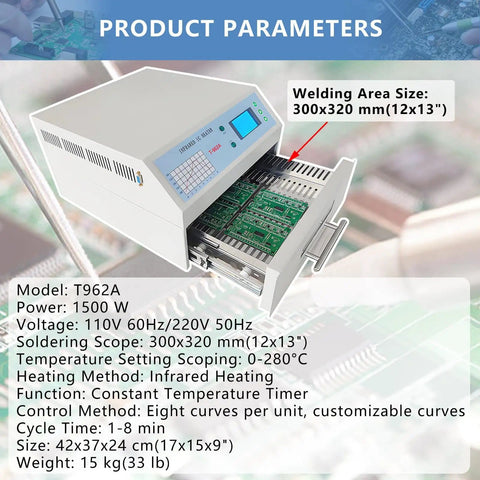

✅ Heating zone: 300x320 mm (12x13 in) infrared, 1500 W
✅ Temperature range: 0°C to 280°C for wide soldering needs

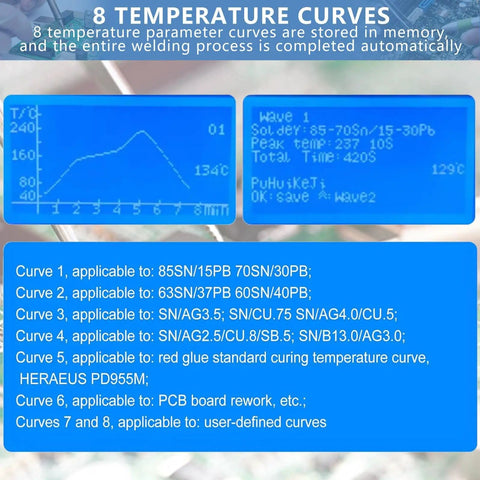

✅ Eight preset temperature profiles plus manual heating/cooling

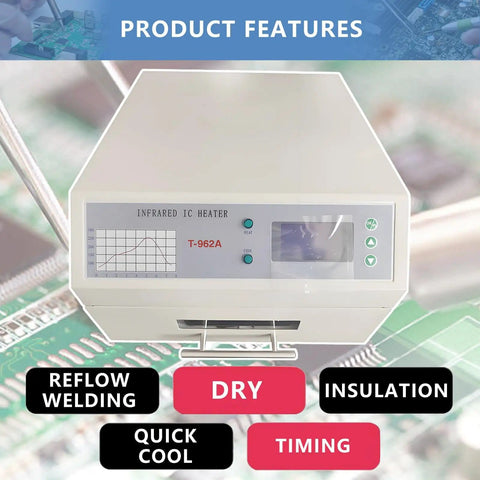

✅ Pull-out design with LCD display for easy access and monitoring

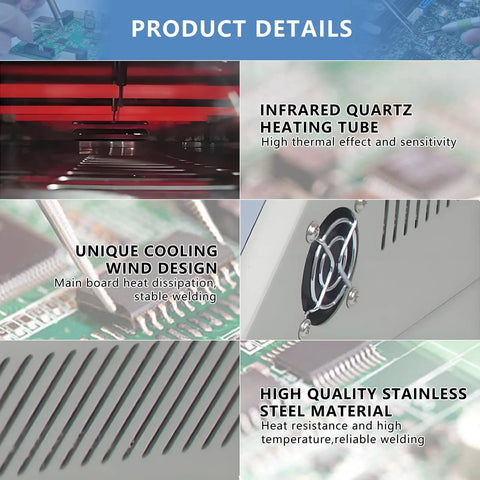

✅ Heat insulation shutter and sealed exhaust port for safety (φ110 mm)
✅ Supports CHIP, SOP, PLCC, QFP, BGA packages; ideal for R&D and small-batch
✅ 110V, 60Hz operation; suitable for standard workshop power
✅ Suitable for glue curing, PCB aging, and repair tasks
💡 What is a reflow oven used for in PCB assembly?
In simple terms, a reflow oven provides controlled heating to melt solder paste and form reliable joints on surface-mount components.
- Precise temperature control and repeatable profiles for SMD soldering
- Even heat distribution reduces cold joints and bridging
- Ideal for R&D, small batch production, and repair tasks
- Useful for curing adhesives and aging PCBs for evaluation
